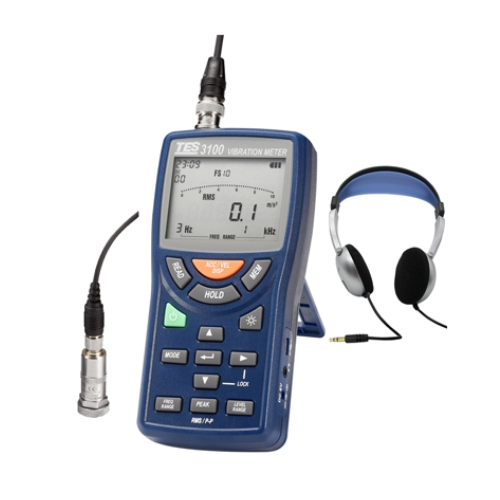

TES TES-3100 Vibration Meter

Specifications

Piezoelectric Accelerometer (PA-01)

Sensitivity: 5mV/(m/s²)(±10%)

Acceleration range: 200m/s²

Amplitude nonlinerity: ±1%

Freqency response: 5Hz to 10kHz (±10%), 10kHz to 15kHz (±3dB)

Resonance freqency: 27kHz

Transverse sensitivity: ≦5%

Dimensoins/Weight: 46(H) x 19(D) mm / 46g

Measurement range (PA-01)

ACC (Acceleration): 0.02 to 200m/s² EQ PEAK 1Hz to 5kHz

VEL (Velocity): 0.3 to 1000mm/s RMS 3Hz to 1kHz

0.1 to 1000mm/s RMS 10Hz to 1kHz

DISP (Displacement): 0.02 to 100mm EQ PEAK 3Hz to 500Hz

0.001 to 100mm EQ PEAK 10Hz to 500Hz

Frequency range:

ACC (Acceleration): 3Hz to 1kHz, 3Hz to 5kHz, 1Hz to 100Hz, 3Hz to 20kHz

VEL (Velocity): 10Hz to 1kHz, 3Hz to 1kHz

DISP (Displacement): 1Hz to 500Hz, 3Hz to 500Hz

Measurement full-scale range:

For accelerometer PA-01 and accelerometers with sensitivity: 1.0 to 9.9mV/(m/s²)

ACC (Acceleration): 1, 10, 100, 1000m/s²

VEL (Velocity): 10, 100, 1000mm/s

DISP (Displacement): 0.1, 1, 10, 100mm

Indication characteristics:

Acceleration:: RMS, EQ PEAK

Velocity: RMS, EQ PEAK

Displacement: RMS, EQ PEAK, EQ p-p

Gain calibration (Accelerometer sensitivity selection establishes suitable gain)

Setting range: 0.10 to 0.99, 1.0 to 9.9, 10 to 99mV (m/s²)

Ambient conditions for operation

Accelerometer: -20 to +70°C, max. 90%RH

Main unit: -10 to +50°C, max. 90%RH

Manual memory: Maximum 99 data can be stored manually

Power requirements: 4 IEC R6 (size AA) batteries, AC adapter 6V (option)

Battery life (continuous use): 8 hours (approx.)

Dimensions / Weight: 158(L) × 78(W) × 40(H)mm / 286g

Supplied accessories: Instruction manual, Battery
