1. Altera Stratix® V GX FPGA (5SGXEA7N2F45C2)
JTAG header for FPGA programming
Fast passive parallel (FPPx32) configuration via MAX II CPLD and flash memory
2. General user input / output:
4 LEDs
1 LED Array
2 push-buttons
2-position DIP switch
3. On-Board Clock
50MHz Oscillator
Programmable oscillators Si570 and CDCM61004
4. Memory
36MB 550MHZ ISSI
2GB 933MHz DDR3 SDRAM
256MB FLASH
5. Communication Ports
Two SFP+ connectors
One Serial ATA (SATA II) host port
PCI Express (PCIe) x8 edge connector
One RS422 transceiver with 1394 connector
6. System Monitor and Control
Temperature sensor
Fan control
7. Power
PCI Express 6-pin power connector, 12V DC Input
PCI Express edge connector power
8. Mechanical Specification
PCI Express low-profile and half-length

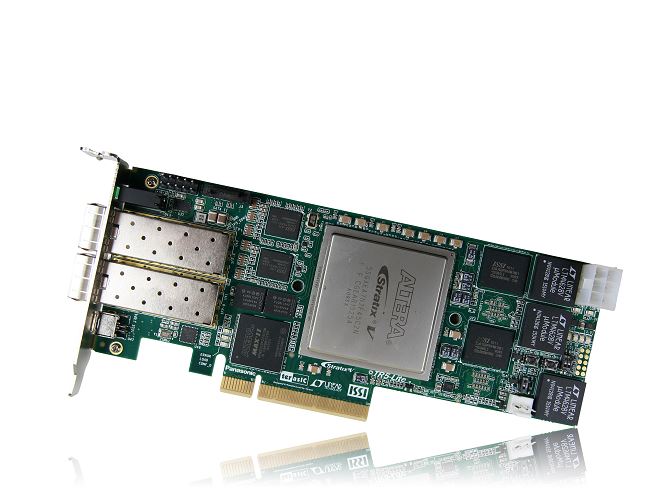

The TR5-Lite Stratix V FPGA Development Kit a slim form-factor PCIe board that features maximum power in a minimum size. Perfect for 1U chassis servers and other stringent environments, the TR5-Lite includes high speed SFP+ interfaces and high-bandwidth memory architecture for high performance computing, cloud systems, and ultra low-latency trading
