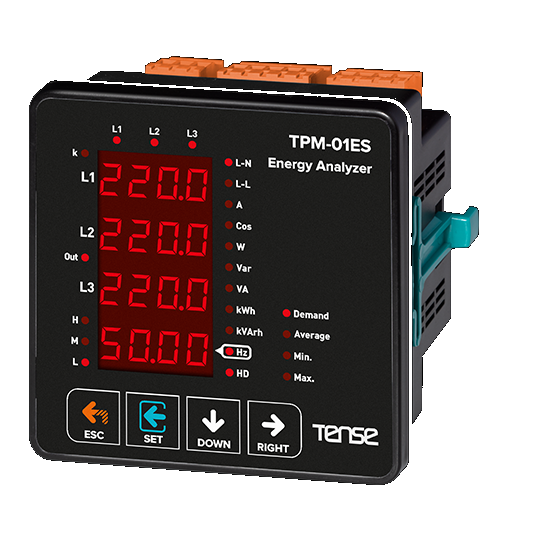

TENSE TPM-01ES Energy Analyzer (85V-300V AC)

- Remote Communication with RS485 (RS485 ModBus RTU 1200 - 38400bps )

- Supported Connection: 3P4W

- Measures up to 31st voltage harmonics (L-N).

- It shows the apparent powers of each phase: V1, V2, V3, I1, I2, I3, P1, P2, P3, Q1, Q2, Q3, S1, S2, S3, Cosφ, kW, kVA, kVAr, kWh, kVArh, kVAh.

- 4x4 Digit LED Display

- You can delete energies and demands (I, P, Q, S).

- Digital Input: 1 x 9V-24V DC

- Relay Output: 2 x 3A/250V AC (Resistive Load)

- Password Protected Menu

- Operating Voltage: 85V-300V AC

- Frequency: 50/60Hz

- Voltage Input: 5V -330V AC; Voltage Meas. Range: 5V - 330kV

- Current Input: 10mA - 5.5A; Current Meas. Range: 10mA - 5.500A

- Error: 0.5% (U, I), 1% (kVA), 2% (kVAr)
