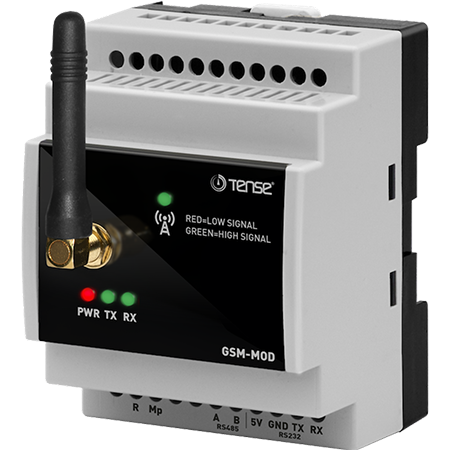

TENSE GSM-MOD GSM Based Modem/Gateway (85V - 285V AC)

GSM modems are designed for wireless data transfer and control from devices with communication infrastructure.

Operating Voltage: 85V - 285V AC

Operating Frequency: 50Hz. / 60Hz.

Operating Temperature: -20ºC.....+55ºC

Air ESD Protection: 10kV

Impact Resistance: 4kV

Operating Power: 1VA(system standby), 10VA(system communicate)

Display: Power LED, Signal Level LED and Rx, Tx LEDs

Connection Type:

Max. 19200bps (For meters IEC62056-21 protocol);

Modbus Communication (For meters, analyzers and reactive controllers;

RS485 inferface with Max.128 devices;

RS232 inferface;

Optik probe inferface;

TCP/IP communication protocol

Communication Type: GSM/GPRS

Antenna: 2.2dBi SMA replaceable 90º antenna

Bandwidth: Quad band GSM/GPRS/EDGE

Weight: <200gr.

Protection class: IP20

Operating Altitude: <2000m

User Guide
