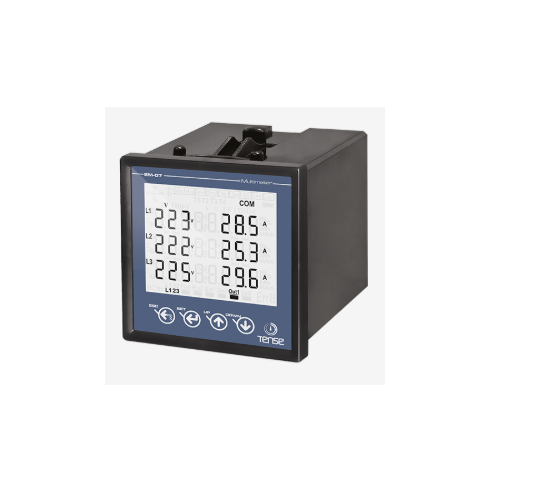

Operating Voltage: 85V - 240V AC
Operating Frequency: 50 / 60 Hz
Operating Power: <6VA
Operating Temp.: -20ºC.....55ºC
Voltage Input: 5V -300V AC
Voltage Measurement Range: 5V - 600kV; %±1
Current Input: 50mA - 5,5A
Current Measurement Range: 50mA - 50.000A; %±1
Connection Type Supperted: 3P4W
Current Transformer Ratio: 1.0....2000.0
Voltage Transformer Ratio: 1....4000
Communication: RS485 MODBUS RTU
Display: LCD 71,5x61,5
Contact Output: 2A / 250V AC (Resistive Load)
Weight: <300Gr
Protection Class: IP40(Front Panel), IP00(Body)
Panel Hole Dimensions: 91mm x 91mm
Cable Diameter: 1.5mm²
Installation: Front-mounted to the panel
Opreting Altitude: <2000meter
