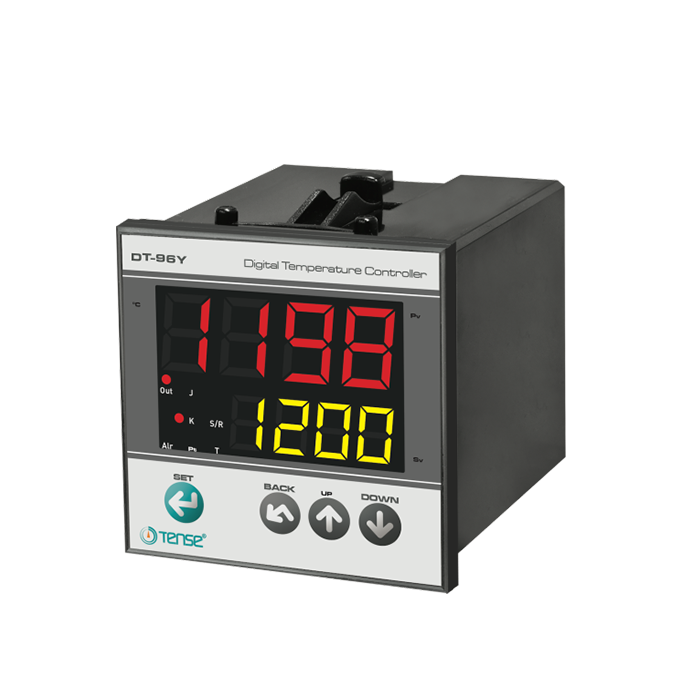

TENSE DT-96Y Auto-tune PID Temperature Controller

Dimensions: 96x96

Panel Cut-out: 91x91

Display: 4 Digits 7 Segment (PV), 4 digits 7 Segment (SV)

Sensor Type: J,K,T,S,R type T/C, Pt100 selectable

Measuring Scale: -100..600°C, J type T/C (Inpt=J), -100.0 .. 600.0°C J type T/C (Inpt=J.0)

-100..1300°C, K type T/C (Inpt=k), -100.0..999.9°C, K type T/C, (Inpt=k.0)

-100..400°C, T type T/C (Inpt=t), -100.0 .. 400.0°C, T type T/C (Inpt=t.0)

0..1750°C, S type T/C (Inpt=S) 0 .. 1750°C, R type T/C (Inpt=r)

-100..600°C, Pt100, (Inpt=Pt) -100.0 .. 600.0°C, Pt100, (Inpt=Pt.0)

Resolution: ± 1°C or ± 0.1°C

Accuracy: ± 1 % (Over full scale)

Control Form: ON-OFF or P, PI, PD, PID - selectable

Out Output: Relay (NO + NC), 250VAC, 2A, Resistive load, (optional SSR)

Alarm Output: Relay (NO + NC), 250VAC, 2A, Resistive load, (only NO for DT-48Y)

Heat SET: Lower Limit .. Upper Limit °C (H.Set)

Alarm SET: AL.tY = Abs,-Abs; Lo.L .. UP.L oC (A.Set)

AL.tY = rel, -rel, bnd, -bnd, bn.i, -bn.i; -100 .. +100 / -100.0 .. +100.0°C

Heat Hysteresis: 0 .. 50 / 0.0 .. 50.0°C (H.Hys); PID is active if set to 0

Alarm Hysteresis: 1 .. 50 / 0.1 .. 50.0°C (A.Hys)

Proportional Band: 5 .. 150°C (Pb.C)

Integral Time: 0:00 .. 30:00 min:sec. (OFF if set to 0:00)

Derivative Time: 0:00 .. 10:00 min:sec. (OFF if set to 0:00)

Control Period: 1 .. 200 sec. (Ct)

Offset: -100..+100 oC / -100.0 .. +100.0°C (oFFS)

Heating/Cooling: Selectable (only ON-OFF control form is active for cooling)

Supply Voltage: 100..240VAC, 50-60Hz or (24VDC/AC; isolation voltage: 40VAC max.)

Power Consumption: < 8VA

Humidity: < 70% (non-condensing)

EMC: EN 61000-6-1, EN 61000-6-3 (Only light industrial environment)

Safety: EN 61010-1; Pollution degree 1, measurement category I, (Only light industrial environment, double/reinforced isolated, non-conductive pollution environment)

Protection Class: IP20; according to EN 60529

Temperature Spec.: Operating: 0 .. 50°C, Storage -10°C .. 60°C (no icing)

Weight: < 0.5 kg

Torque for screwing: Max. 0.5 N.m
