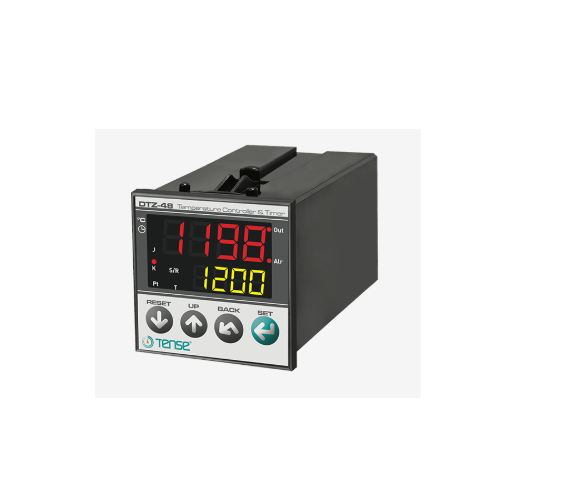

TENSE DT-48 Temperature Controller

Display: LED, 2 x 4 digits

Sensor Type: J,K,T,S,R type T/C, Pt100 selectable

Measuring Range: -100 .. 600 °C, J type T/C, (Inpt=J)

-100 .. 1300 °C, K type T/C, (Inpt=k)

-100 .. 400 °C, T type T/C, (Inpt=t)

0 .. 1750 °C, S type T/C, (Inpt=S)

0 .. 1750 °C, R type T/C, (Inpt=r)

-100 .. 600 °C, Pt100, (Inpt=Pt)

-99.9 .. 600.0 °C, Pt100, (Inpt=Pt.0)

Resolution ± 1 ƻC or ± 0.1 ƻC

Error: ± % 0.3

Control form: ON-OFF or P,PI,PD,PID

Output: Relay (NO + NC), 250VAC, 2A, (optional SSR)

Alarm output: Relay (NO), 250VAC, 2A

Temp. SET: Lo.L .. UP.L °C (H.Set)

Alarm SET: AL.tY = Abs,-Abs; Lo.L .. UP.L °C (A.Set)

AL.tY = rel, -rel, bnd, -bnd, bn.i, -bn.i;

-100 .. +100 / -10.0 .. +10.0 (Pt.0)

Heat Hysteresis : 0 .. 50 / 0.0 .. 5.0 ƻC (H.Hys); PID is active if set to 0

Alarm Hysteresis : 1 .. 50 / 0.1 .. 5.0 ƻC (A.Hys)

Proportional Band : 1 .. 130 ƻC (Pb.C)

Integral Time : 0 .. 30,0 min (OFF if set to 0)

Derivative Time : 0.. 10,0 min. (OFF if set to 0)

Control Period : 4 .. 200 sec (Ct)

Ofset : -100..+100 C / -10.0 .. +10.0 (oFFS)

Heating/Cooling : selectable (Only ON-OFF control form is active for cooling)

Cold. Junc. Comp. : 0 .. 50 °C (T/C)

Line Comp. : 10 Ohm max. (3 telli Pt100)

Opwerating Tepmp.: 0 .. 50 °C

Operating Voltage: 100…240VAC

Opterating Frequency: 50Hz / 60Hz

Power Consump.: < 6VA

Dimension: 46mm x 46mm

Mount: front Panel
