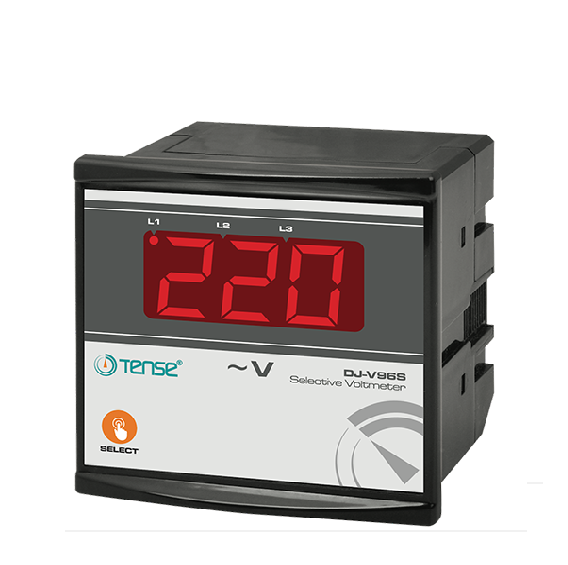

TENSE DJ-V96S VOLTMETER

Measure 3 phase voltage (N-L1, N-L2, N-L3, L1-L3, L1-L2, L2-L3)

- Displays : (3 digits) 1x LED; 20mm

- Operating Voltage : 140-260VAC

- Operating Frequency : 50/60Hz

- Operating Power : <4VA

- Operating Temperature : -20°C.....+55°C

- Current Measuring Range : 1V - 500V AC

- Cable Diameter : 1,5mm²

- Weight : Max. 220gr

- Panel Hole Dimension : 91x91mm

- Mounting : Panel front mounted

- Accuracy : 1%

- Protection Class : IP20
