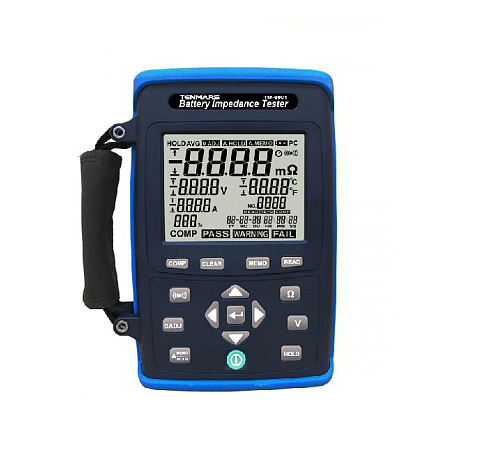

TENMARS TM-6001 Battery Impedance Tester (4mΩ~400Ω, 1KHz ± 30Hz,6.000V / 60.00V)

Resistance range: 4mΩ~400Ω (measuring frequency :1KHz±30Hz)

Voltage range: 6.000V/60.00V

Comparator: voltage, impedance

K type thermocouple: -50°C~400°C

Max. voltage measurement:60VDC (battery checker)

Comparator :0~99 records. For battery internal impedance, voltage

Support the comparator function to rate the conditions as PASS, WARNING or FAIL

USB interface datalogger with 9999 records.

Power supply: 1.5V AA alkaline battery x 6 pcs.

Measuring frequency :1KHz ±30Hz

Accessories:

User’s manual

Carrying case

Clip type test leads set

Software CD

Adapter AC 100~240V to DC 9~12V/1A

USB cable

Datasheet
