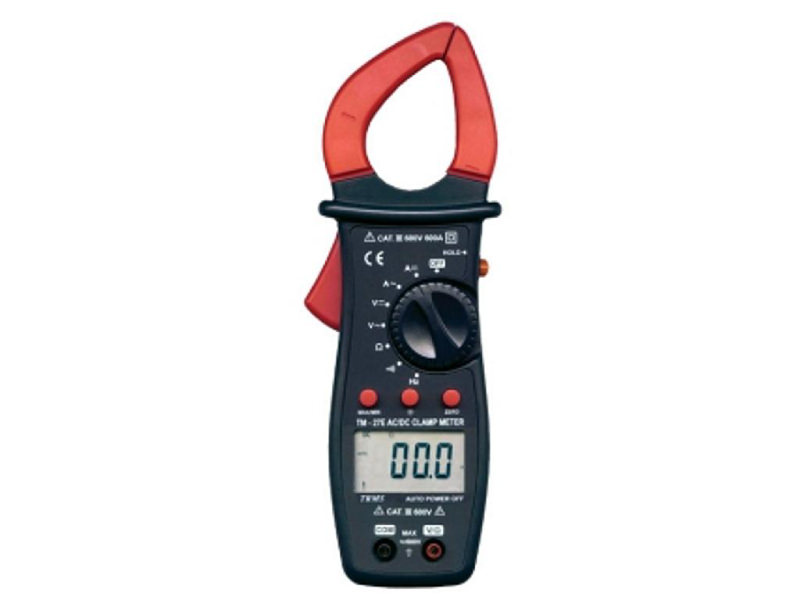

Specification
- Display: LCD
- Measurement range:
+ AC Current: 0.1~600A/±(2.0% of rdg + 10 dgts)
+ AC Voltage: 0.1V to 600V/ ±(1.5% of rdg + 5 dgts)
+ DC Voltage: 0.1V to 600V, ±(1.0% of rdg + 5 dgts)
+ Resistance: 0.1Ω~400MΩ/ ±(1.0% + 5 dgts)
+ Frequency: 1Hz to 400kHz ±(0.8% + 3 dgts)
- Function:
+ Data measurement hold
+ Continuity Buzzer, Blacklight
+ Auto Power save
+ Auto range
+ zero adjustment
+ Min/Max
- Dimension, mass: 195x64x39mm, 280g
|
Maximum Current |
600 Amps |
|
Display |
4000 counts |
|
Max. Conductor Size |
35mm |
|
AC Current |
0.1A to 600A, ±(2.0% of rdg + 5 dgts) |
|
AC Voltage |
0.1mV to 600V, ±(1.2% of rdg + 7 dgts) |
|
DC Current |
0.1A to 600A, ±(1.5% of rdg + 5 dgts) |
|
DC Voltage |
0.1mV to 600V, ±(0.5% of rdg + 3 dgts) |
|
Resistance |
0.1Ω to 40MΩ, |
|
Continuity Buzzer |
Yes |
|
Frequency |
1Hz to 400KHz |
|
Backlit Display |
Yes |
|
Autorange |
Yes |
|
Auto Power Off |
Yes |
|
Min/Max |
Yes |
|
REL (zero adjust) |
Yes |
|
Data Hold |
Yes |
|
Dimensions |
218mm (L) x 75mm (W) x 43mm (D) |
|
Weight |
375g |
