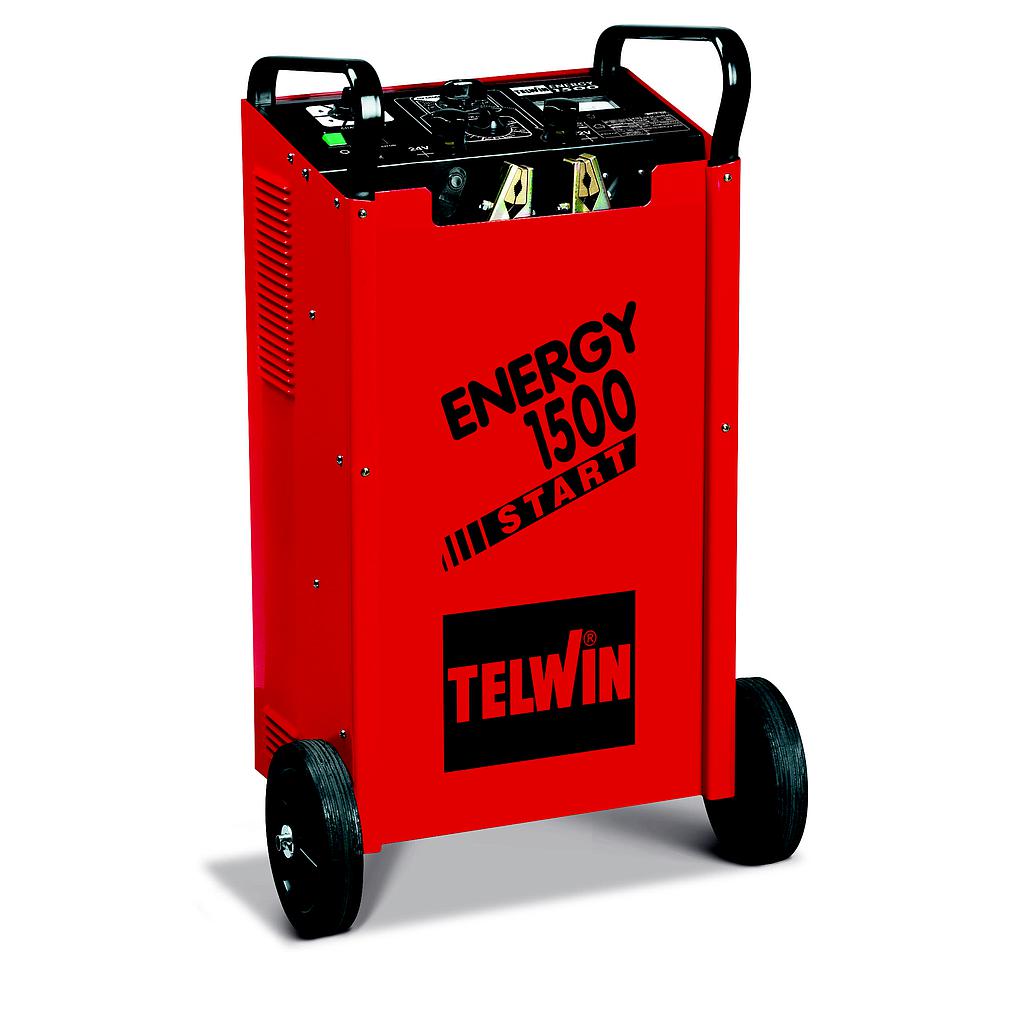

Telwin ENERGY 1500 START BATTERY CHARGER / STARTER (7 KW)

EFFECTIVE CHARGING CURRENT: 150 / 250 A

ADJUSTMENT POSITIONS: 6

THREE PHASE MAINS VOLTAGE: 230 / 400 V

RATED CHARGE CURR.: EN60335-2-29 130 / 220 A

DIMENSIONS: 38 x 56 x 88,5 cm

MAINS FREQUENCY: 50 / 60 Hz

START CURRENT: 1V/C EN60335-2-29 1000 / 1300 A

WEIGHT: 69 kg

CHARGE POWER: 7 KW

MAX STARTING CURRENT: 1700 / 2000 A

START POWER: 44 KW

MIN. RATED REFERENCE CAPACITY: 70 Ah

PIECES/PALLET: 4 pz/pallet

CHARGING VOLTAGE: 12 / 24 V

MAX RATED REFERENCE CAPACITY: 2200 / 4000 A

PIECES/PALLET - B: 6 pz/pallet-B

Included Accessories

REMOTE CONTROL 6 M - 123993

CABLE 50MMQ 3M-WORK CLAMP - 713260

CABLE 50MMQ 3M-POSITIVE CLAMP-EYELET Ø10 - 713162
