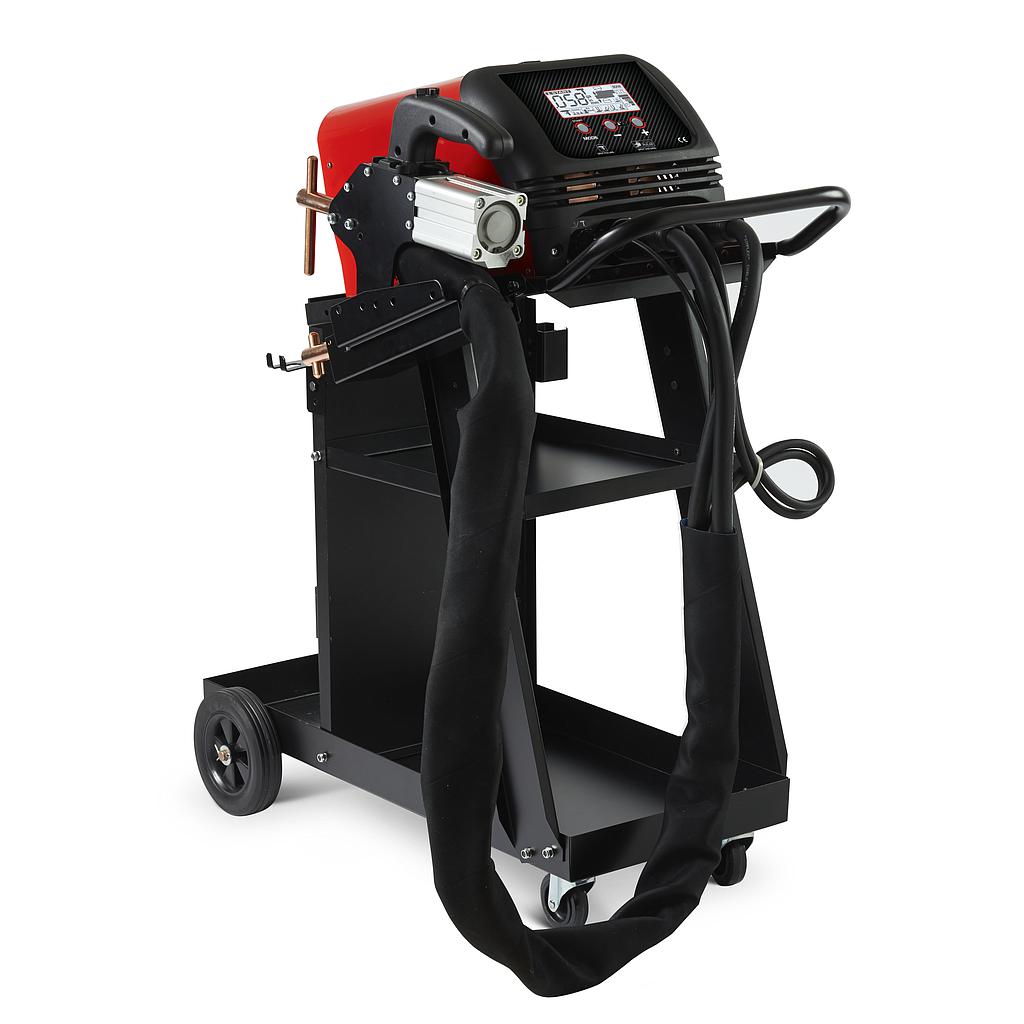

Telwin DIGITAL SPOTTER 7000 SPOT WELDING

MAX ABSORBED POWER: 27,3 kW

PROTECTION DEGREE: IP22

DOUBLE PHASE MAINS VOLTAGE: 400 V

RATED POWER: X=50% 6,7 kW

DIMENSIONS: 52 x 38 x 88,5 cm

MAINS FREQUENCY: 50 / 60 Hz

POWER FACTOR (cosphi): 0,7

WEIGHT: 50 kg

MAX SPOT-WELDING CURRENT: 4500 A

MAX WELD.THICK. ON 2 SHEETS: 1,5 +1,5 mm

MAX NO LOAD VOLTAGE: 8,6 V

DUTY CYCLE: 3 %

Included Accessories

ELECTRODE HOLDER ARM L=120MM - 690005

PNEUMATIC "X" GUN + CABLES - 801048

STRAIGHT ELECTRODE L=130MM D.12MM - 690047

TROLLEY - AMERICA - 803084

STRAIGHT ELECTRODE L=50MM D.12MM - 690050
