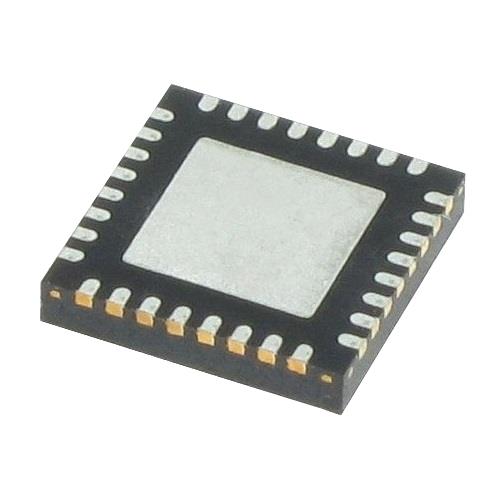

Telink TLSR8258F1KET32 BLE 5.0, multi-antenna AoA/AoD, BLE Mesh BLE 5.0, multi-antenna AoA/AoD, BLE Mesh, 802.15.4, Zigbee 3.0, RF4CE, HomeKit, Dual-Mode, 2.4G Proprietary, 32 pin QFN
Manufacturer: Telink Model: TLSR8258F1KET32 - Contact
Core: RISC
Technology: Si
Sensitivity: - 93 dBm
Unit Weight: 61 mg
Output Power: 10 dBm
Data RAM Size: 64 kB
Data RAM Type: SRAM
ADC Resolution: 14 bit
Data Bus Width: 32 bit
Interface Type: I2C, I2S, SPI, UART, USB
Mounting Style: SMD/SMT
Number of I/Os: 17 I/O
Number of Timers: 3 x 32 bit
Maximum Data Rate: 2 Mbps
Moisture Sensitive: Yes
Operating Frequency: 2.4 GHz
Program Memory Size: 1 MB
Program Memory Type: Flash
Supply Voltage - Max: 3.6 V
Supply Voltage - Min: 1.8 V
Number of ADC Channels: 10 Channel
Maximum Clock Frequency: 32 MHz
Supply Current Receiving: 5.3 mA
Supply Current Transmitting: 4.8 mA
Maximum Operating Temperature: + 85 C
Minimum Operating Temperature: - 40 C
