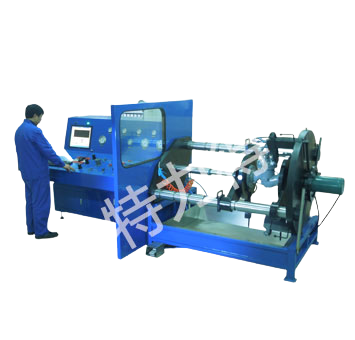

Telide TC-16 Control Valve and General Valve Test Bench (250/400bar)

Test medium: nitrogen gas, compressed air.

Maximum test Pressure: 250bar (gas), 400bar (liquid).

Test range: 1"-16"/ DN25-400 mm

4 "-8" (small flange)

8 "- 16" (large flange)

Acc. to standards: API598, API6D, etc.

Test items:

shell test; low-pressure closure test;

backseat test; high-pressure closure test.

Clamping force: 40 T.

Test gas pressure range: 0-2500 psi
