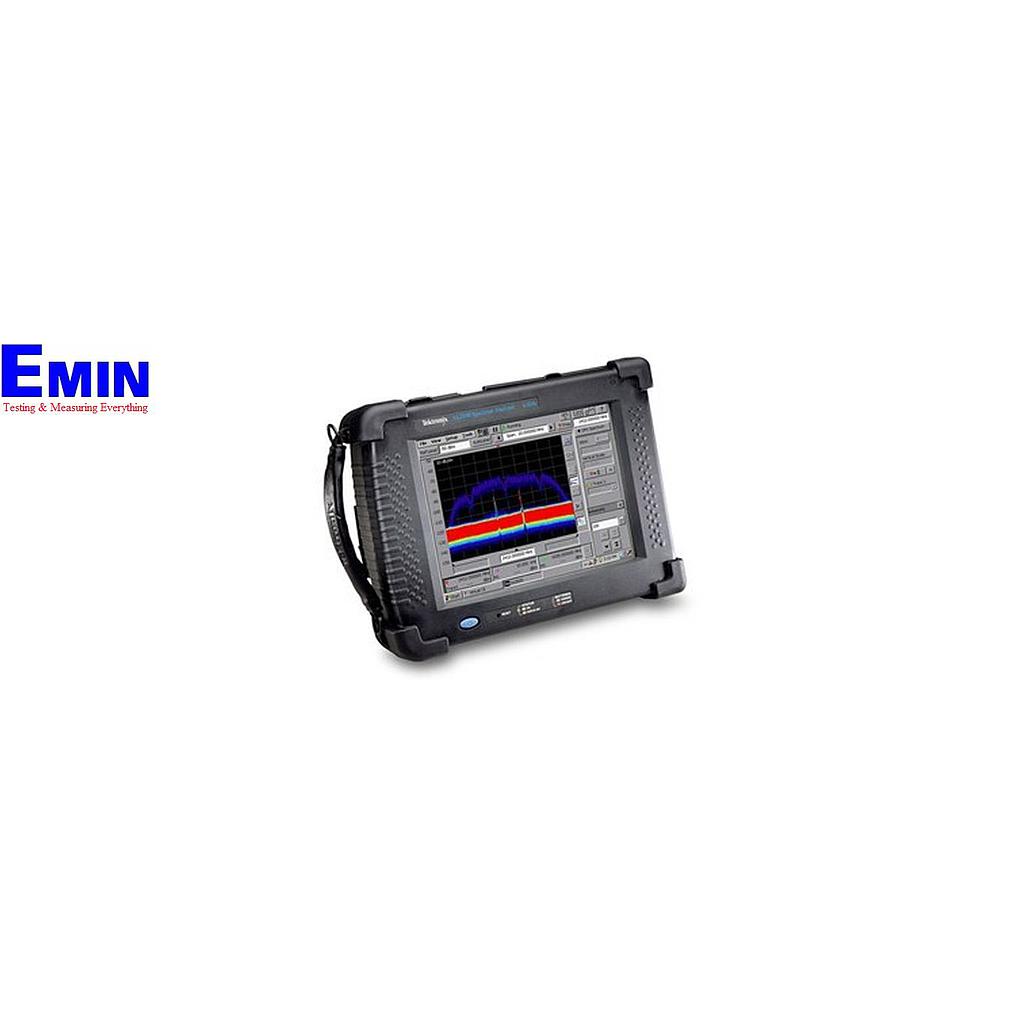

Tektronix SA2500 Handheld Spectrum Analyzer

Name: Tektronix SA2500 Handheld Spectrum Analyzer
Brand: TEKTRONIX

ManufacturerTEKTRONIX

ModelSA2500

Contact

Quantity

Secure Checkout

Quality Engagement

Easy change and return

Delivery Available

Manufacturer: Tektronix
Model: SA2500

Datasheet

Specifications

All specifications apply to all models unless noted otherwise.

Model overview

Model	Real-time bandwidth	Frequency range	Minimum event duration for 100% POI	SFDR (typical)
SA2500	20 MHz	10 kHz - 6.2 GHz	125 μs ¹ - 500 μs	<70 db="" td="">
H500	20 MHz	10 kHz - 6.2 GHz	125 μs	<70 db="" td="">

¹ With option EP1 installed

General performance characteristics

RF input

Operating frequency range: 10 kHz - 6.2 GHz
Maximum operating input level: +20 dBm peak envelope power
This is the maximum input level at which the instrument will meet its performance specifications. For a signal without any amplitude variation, peak envelope power = rms.
Maximum Input Power without Damage: 50 W_rms below 3.2 GHz
15 W_rms between 3.2 GHz and 6.2 GHz

IF output

Output impedence

50 Ω

IF center frequency

140 MHz

IF 3 dB bandwidth

24 MHz

IF Output Level (nominal performance at 0 dBm input)

Input frequency	IF output level
1 GHz	-12 dBm
1.6 GHz	-12 dBm
3.6 GHz	-10 dBm
4.35 GHz	-11 dBm
5 GHz	-16 dBm
5.75 GHz	-22 dBm

Internal timebase

Frequency error (factory calibration corrected)

±0.5 PPM from 0 °C to 50 °C

±1.0 PPM aging/year

Twenty-minute warm-up period required to meet accuracy specification

Frequency error (GPS corrected)

±0.01 ppm (typical)

Frequency error (after GPS lock loss)

±0.03 ppm, 10 minute interval after lock loss (unit operated for >20 minutes before lock loss and < 5 °C temperature change over interval) (typical)

External reference input

impedance

1500 Ω

Frequencey range

1 MHz up to 20 MHz ± 1 PPM, in 1 MHz steps

Input level range

-15 dBm to +15 dBm, 1 MHz to 15 MHz

-10 dBm to +15 dBm, 16 MHz to 20 MHz

dBm levels assume 50 ohm source

Integrated GPS receiver

Position Accuracy (typical): Horizontal: R < 9 meters (P = 90%)
Altitude: H < 18 meters (P = 90%)
Position Update Rate (nominal): 1 update/sec (Latitude/Longitude/Altitude)

Spectrum analyzer characteristics

Frequency

Span: 10 kHz to 6.2 GHz (preamp off)
10 MHz to 6.2 GHz (preamp on)
Center frequency setting resolution: 1 Hz

Swept spans (wide scanning)

Span Range: 20 MHz to 6.2 GHz
Spectrums per second: 61 (typical)
Scan Speed: 1240 MHz per second (typical)

Resolution Bandwidth (RBW)

RBW Range: 10 Hz to 3 MHz (Manual)
10 Hz to 1 MHz (Auto)
RBW setting resolution: 1 Hz

Spectral purity

Displayed average noise level, preamp On

-153 dBm, 10 MHz to 2 GHz, 10 Hz RBW

-152 dBm, 2 GHz to 4 GHz, 10 Hz RBW

-151 dBm, 4 to 5 GHz, 10 Hz RBW

-145 dBm, 5 to 6.2 GHz, 10 Hz RBW

Phase noise (entire operating frequency range)

≤ -95 dBc/Hz at 10 kHz offset

≤ -95 dBc/Hz at 20 kHz offset

≤ -95 dBc/Hz at 30 kHz offset

≤ -97 dBc/Hz at 100 kHz offset

≤ -110 dBc/Hz at 1 MHz offset

Residual spurious, preamp Off

≤ -90 dBm, 0 dBm attenuator setting

Exception Frequencies:

9 MHz to 19 MHz center frequency

3464 MHz center frequency

4592 MHz center frequency

5374 MHz to 5378 MHz center frequency

6160 MHz center frequency

Residual spurious, preamp On

≤ -105 dBm, 0 dBm attenuator setting

Exception Frequencies:

9 MHz to 19 MHz center frequency

5374 MHz to 5378 MHz center frequency

Third order IMD

≤ -70 dBc for two tones at or below the reference level, preamp Off, all gain settings auto-coupled

Second harmonic

≤ -60 dBc for a single tone at or below the reference level, preamp Off, all gain settings auto-coupled

Input-related spurious

≤ -70 dBc except for Fin= 2.282 GHz ± 20 MHz

The dBc reference for this specification is the total power of all signals at the input of the instrument regardless of the current span

Input-related spurious, exception frequencies, typical

≤ -55 dBc at Fin= 2.282 GHz ± 20 MHz

The dBc reference for this specification is the total power of all signals at the input of the instrument regardless of the current span

Third order intercept

≥ +7 dBm, 0 dB input attenuation, preamp Off

Spectral display amplitude

Reference level range

+20 dBm to -160 dBm

Marker power accuracy

±1.75 dB, -50 dBm ≤ input ≤ +20 dBm, preamp off

±3.0 dB, -80 dBm ≤ input < -50 dBm, preamp on, above 10 MHz

±3.75 dB, -120 dBm ≤ input < -80 dBm, preamp on, above 10 MHz

Use peak detector for CW-like signals; use average detector for wideband (signal >> RBW)

Accuracy guaranteed for CW signals and span set to 20 MHz or less

Display modes

Normal – Updates display with each new result

Max Hold – Updates displayed point only if new point > old

Min Hold – Updates displayed point only if new point < old

Max/Min Hold – Displays a vertical bar between Max Hold and Min Hold

Average – Displays average of N (specified by user) acquisitions

Average is calculated as follows:

Last N values are saved in memory; when a new result is available, the earliest result of the N stored values is discarded, the new result is added to the stored values, and a new average is calculated from the stored values. If the number of results is less than N, then all of the results are averaged together

Number of averages

1 ≤ N ≤ 200

General purpose RF measurement characteristics

RF channel power measurement

Bandwidth range

1 kHz - 20 MHz

Accuracy

≤1.2 dB; +20 dBm to -60 dBm; 1 MHz to 3.2 GHz, preamp off, Ref Level > -35 dBm

≤2.4 dB; -40 dBmto -75 dBm; 10MHz to 3.2 GHz, preamp on, Ref Level ≤ -35 dBm

≤1.8 dB; +20 dBm to -50 dBm; 3.2 GHz to 6.2 GHz, preamp off, Ref Level > -35 dBm

≤3 dB; -40 dBm to -75 dBm; Resolution BW < 100 kHz; -40 dBm to -55 dBm; Resolution BW ≥ 100 kHz 3.2GHz to 6.2 GHz, preamp on, Ref Level ≤ -35 dBm

Specifications apply for default control settings (Auto RBW, Auto Level)

Occupied bandwidth measurement

Percent Power Inclusion Range: 50-100%

RF field strength

Channel bandwidth range: Same as RF channel power
Accuracy: Same as RF channel power

Scan, classify, and locate characteristics

DPX™ Live RF spectrum display

Spectrum processing rate, nominal: 10,000 spectrums per second, span independent (H500 standard and SA2500 with Option EP1)
2,500 spectrums per second (SA2500 standard)
Minimum signal duration for 100% probability of intercept (POI), typical: 125 μs (H500 standard and SA2500 with Option EP1)
500 μs (SA2500 standard)
Span Range: 5 kHz to 20 MHz

Spectrogram (rising raster)

Spectrum processing rate, nominal: 20 spectrums per second
Minimum signal duration for time measurement: 20 milliseconds (typical)
Span range: 5 kHz to 20 MHz

Trigger

Modes: Single or continuous, free run or triggered
Event source: IF level, external input, or internal timebase
Types: Rising edge, falling edge, level above threshold, level below threshold
Delay: 0 to 60 s with 1 μs resolution
Position: Settable from 0-100%

IF level trigger

Threshold range: -160 dBm to +20 dBm
Bandwidth range: 5 kHz to 20 MHz

External trigger

Maximum input level without damage: ±5 V_peak continuous
Minimum high threshold: 2.0 V
Maximum low threshold: 0.8 V
Minimum High/Low time: 10 ns
Impedance: 10 kΩ
Coupling: DC

Internal timebase trigger

Mode: Single trigger on time, repeat trigger at interval, or both
Resolution: 1 μs

Measurement result time stamps

Resolution (nominal): 1 ms before GPS lock obtained; 1 ns after GPS lock obtained.
Accuracy - relative (typical): ±500 ns time-stamp error between multiple measurement results. Internal GPS reference lock required.
Accuracy - GPS reference (typical): ±1 μs, all measurements except DPX spectrum; ±1 ms DPX spectrum.
Time-stamp error relative to GPS system absolute time reference. Internal GPS reference lock required, identical acquisition bandwidth setting required.

IQ acquisition time

(available in amplitude vs. time measurement)

Span	Sample rate	Maximum acquisition length
20 MHz	28 msps	36 ms
10 MHz	14 msps	73 ms
5 MHz	7 msps	146 ms
2 MHz	2.8 msps	365 ms
1 MHz	1.4 msps	731 ms
500 kHz	700 ksps	1.4 sec
200 kHz	280 ksps	3.6 sec
100 kHz	140 ksps	7.3 sec
50 kHz	72.9 ksps	14 sec
20 kHz	27.3 ksps	37 sec
10 kHz	13.7 ksps	74 sec
5 kHz	6.8 ksps	149 sec

AM demodulation

Measurement frequency: As selected
Minimum input signal level, typical: -100 dBm
Audio measurement bandwidth: 8 kHz

FM demodulation

Measurement frequency: As selected
Minimum input signal level, typical: -100 dBm
Maximum signal deviation: Up to 100 kHz
Audio measurement bandwidth: 8 kHz, 15 kHz, 75 kHz, or 200 kHz
Maximum audio output bandwidth: 15 kHz

Signal strength indicator

Input signal level: -120 dBm, minimum
Measurement frequency: As selected
Measurement bandwidth: Up to 20 MHz, dependant upon span and RBW setting
Tone type: Variable beep rate or variable frequency
Update rate, typical: 10 per second

Mapping

Native map type

Graticule (.gsf)

Map types directly supported

Pitney Bowes MapInfo (*.mif), Bitmap (*.bmp), MPS (collection of GSF maps derived from Open Street Map mapping tiles) ¹

Other map types accepted using PC application iMap converter

Google™ earth

Microsoft® MapPoint®

USGS DLG (*.opt)

ESRI ArcInfo Shape (*.shp)

Other raster formats (*.gif, *.jpg, *.png, *.tif)

¹ Maps derived from Open Street Map tiles are © OpenStreetMap contributors. For more information see http://www.openstreetmap.org/copyright.

Power

Battery life: 5 hours of continuous Spectrum mode (with optional second battery). Actual life can be higher depending on usage.

Physical characteristics

Temperature

Operating: 0 °C to +50 °C specified performance, -10 °C to +50 °C, typical
Nonoperating: -40 °C to +60 °C
With batteries installed: While charging: 0 °C to +45 °C
Storage (nonoperating): -20 °C to +60 °C

Humidity

Operating and nonoperating: 5% to 95% relative humidity (RH) at up to +30 °C, noncondensing
5% to 45% RH above +30 °C up to +50 °C, noncondensing

Altitude

Operating: Up to 4,600 meters (15,092 feet)
Nonoperating: Up to 12,192 meters (40,000 feet)

Dimensions

Height: 25.5 cm. (10.0 in.)
Width: 33 cm. (13 in.)
Depth: 12.5 cm.
Weight: 5.56 kg (12.27 lb.)

Color display

Size: 10.4 in. (diagonal), transflective LCD, color
Resolution: 640×480 (VGA)

EMC environment and safety

Electromagnetic compatibility (EMC) compliance: EN61326-1:2006 and EN61326-2:2006 Product Family Standard for Electrical Equipment for Measurement, Control, and Laboratory Use – EMC Requirements.

European Union

Emissions

CISPR11, group 1, class a

EN 61000-3-2

EN 61000-3-3

Immunity

IEC 61000-4-2

IEC 61000-4-3

IEC 61000-4-4

IEC 61000-4-5

IEC 61000-4-6

IEC 61000-4-11
