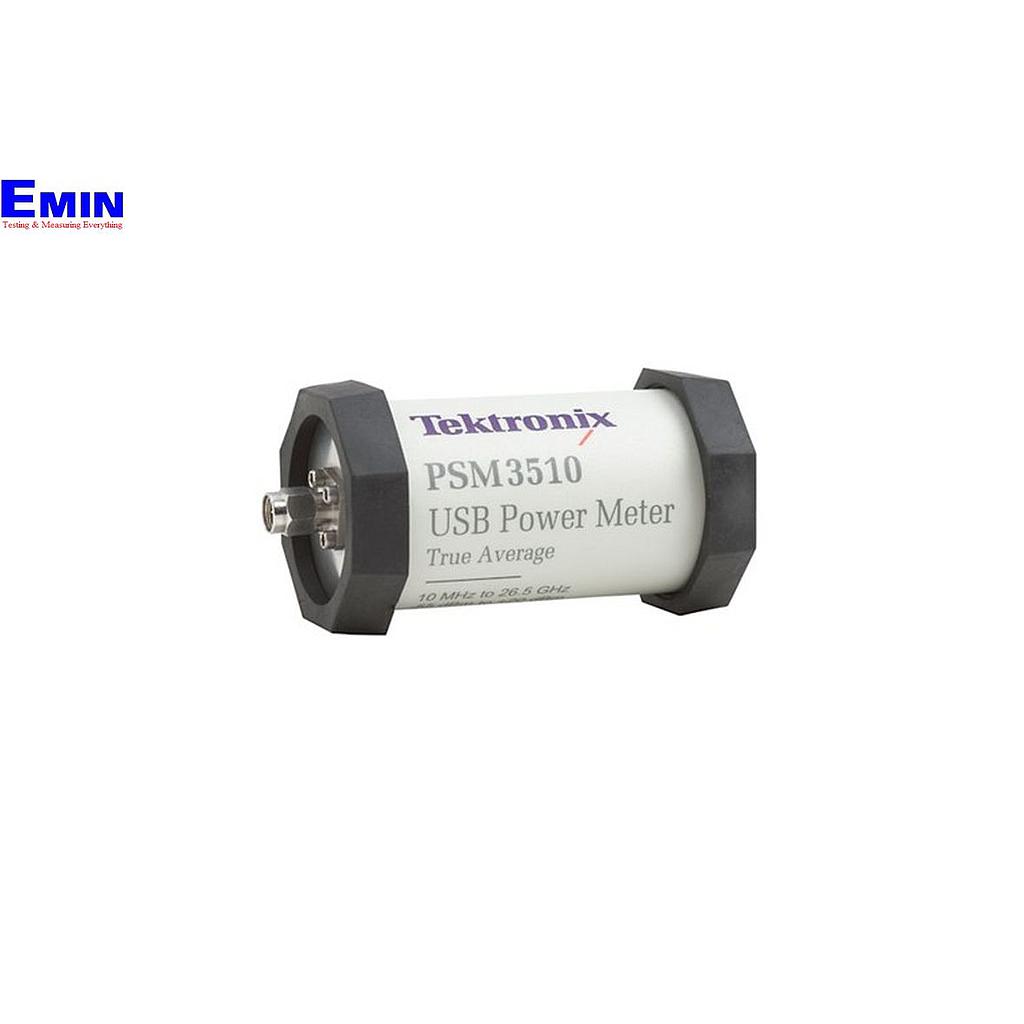

Manucturer: Tektronix
Model: PSM5410
PSM5000 Series USB Power Meters (Average/Peak/Pulse + Profiling)
|
Characteristic |
PSM5110 |
PSM5120 |
PSM5320 |
PSM5410 |
|---|---|---|---|---|
|
Input Connector |
3.5 mm, male |
N-type, male |
N-type, male |
3.5 mm, male |
|
Frequency Range |
100 MHz to 8 GHz |
50 MHz to 18.6 GHz |
50 MHz to 20 GHz |
|
|
Dynamic Range |
100 MHz to 6 GHz: –60 dBm to +20 dBm 6 GHz to 8 GHz: –50 dBm to +20 dBm |
–40 dBm to +20 dBm |
||
|
Maximum Peak-to-Average Ratio |
100 MHz to 6 GHz: 80 dB 6 GHz to 8 GHz: 70 dB |
55 dB |
||
|
Internal Video Bandwidth |
10 MHz, typical |
|||
|
Timebase |
±50 ppm, typical |
|||
|
Real-time Sample Rate |
500 kS/s |
|||
|
Average Power, Minimum Pulse Width |
500 ns, typical |
|||
|
Peak Power, Minimum Pulse Width |
200 ns, typical |
|||
|
Pulse Profiling, Maximum Equivalent-time Sample Rate*4 |
48 MS/s |
|||
|
Pulse Profiling, Minimum Rise Time, 10% to 90% |
54 ns (–70 dBm to –20 dBm pulse, 4 GHz) |
|||
|
Pulse Profiling, Minimum Fall Time, 90% to 10% |
44 ns (–70 dBm to –20 dBm pulse, 4 GHz) |
|||
|
Pulse Profiling, Manual Trigger Level Accuracy |
±1 dBm |
|||
|
Pulse Profiling, Minimum Number of Cycles |
2 cycles |
|||
|
Pulse Profiling, Video Filters |
100 kHz, 200 kHz, 300 kHz, 500 kHz, 1 MHz, 2 MHz, 3 MHz, 5 MHz, 10 MHz |
|||
|
Total Accuracy*1 |
Total Uncertainty = 2 × √[ (CF/2)2 + (L/2)2 + (N/2)2 + (Z/√2)2+ (Mm/√2)2 + (T/√2)2 ] |
|||
|
Calibration Factor Uncertainty (CF) |
100 MHz to 500 MHz: 4.0% 500 MHz to 8 GHz: 2.5% |
100 MHz to 500 MHz: 4.0% 500 MHz to 8 GHz: 1.7% |
50 MHz to 500 MHz: 4.0% 500 MHz to 10 GHz: 1.7% 10 GHz to 18.6 GHz: 1.9% |
50 MHz to 500 MHz: 4.0% 500 MHz to 12.5 GHz: 2.6% 12.5 GHz to 18 GHz: 3.2% 18 GHz to 20 GHz: 3.5% |
|
Linearity Uncertainty (L) |
100 MHz to 2 GHz +15 dBm to +20 dBm: 7.0% +5 dBm to +15 dBm: 5.0% –60 dBm to +5 dBm: 3.0%
2 GHz to 8 GHz +15 dBm to +20 dBm: 5.0% +5 dBm to +15 dBm: 3.0% –60 dBm to +5 dBm: 2.0% |
50 MHz to 100 MHz +15 dBm to +20 dBm: 7.0% –40 dBm to +15 dBm: 5.0%
100 MHz to 2 GHz +15 dBm to +20 dBm: 7.0% +5 dBm to +15 dBm: 5.0% –40 dBm to +5 dBm: 3.0%
2 GHz to 20 GHz +15 dBm to +20 dBm: 6.0% +5 dBm to +15 dBm: 4.0% –40 dBm to +5 dBm: 2.0% |
||
|
Noise Uncertainty (N) |
1 second integration +10 dBm to +20 dBm: 0.15% (100 MHz to 8 GHz)
–30 dBm to +10 dBm: 0.04% (100 MHz to 8 GHz)
–50 dBm to –30 dBm: 0.04% (100 MHz to 6 GHz) 0.15% (6 GHz to 8 GHz)
–60 dBm to –50 dBm: 0.15% (100 MHz to 6 GHz) |
5 second integration +10 dBm to +20 dBm: 1.5% (50 MHz to 20 GHz) –20 dBm to +10 dBm: 1.0% (50 MHz to 20 GHz) –30 dBm to –20 dBm: 1.5% (50 MHz to 20 GHz) –40 dBm to –30 dBm: 7.0% (50 MHz to 18.6 GHz) |
||
|
Zero Offset Power*2 (Z) |
[(0.35 nW at 25 °C) + |ΔT| × (0.025 nW / °C)] + 0.005 nW / month |
50 MHz to 500 MHz [(200 nW at 25 °C) + |ΔT| × (10 nW / °C)] + 10 nW / month
500 MHz to 20 GHz [(100 nW at 25 °C) + |ΔT| × (5 nW / °C)] + 5 nW / month |
||
|
Match*3 |
100 MHz to 250 MHz: 1.18:1 VSWR (21.7 dB Return Loss)
250 MHz to 8 GHz: 1.09:1 VSWR (23 dB Return Loss) |
100 MHz to 250 MHz: 1.18:1 VSWR (21.7 dB Return Loss)
250 MHz to 8 GHz: 1.15:1 VSWR (27 dB Return Loss) |
50 MHz to 10 GHz: 1.20:1 VSWR (21 dB Return Loss)
10 GHz to 18.6 GHz: 1.29:1 VSWR (18 dB Return Loss) |
50 MHz to 10 GHz: 1.20:1 VSWR (21 dB Return Loss)
10 GHz to 20 GHz: 1.29:1 VSWR (18 dB Return Loss) |
|
Temperature Uncertainty (T) |
40 °C < T ≤ 50 °C: 1.00% (plus 1%, 0 dBm to 10 dBm; plus 3%, 10 dBm to 20 dBm)
30 °C < T ≤ 40 °C: 0.75% (plus 1%, 0 dBm to 10 dBm; plus 3%, 10 dBm to 20 dBm)
20 °C < T ≤ 30 °C: 0.00%
10 °C < T ≤ 20 °C: 0.75% (plus 1%, 0 dBm to 10 dBm; plus 3%, 10 dBm to 20 dBm)
0 °C < T ≤ 10 °C: 1.00% (plus 1%, 0 dBm to 10 dBm; plus 3%, 10 dBm to 20 dBm) |
40 °C < T ≤ 50 °C: 6.00% 30 °C < T ≤ 40 °C: 3.00% 20 °C < T ≤ 30 °C: 0.00% 10 °C < T ≤ 20 °C: 3.00% 0 °C < T ≤ 10 °C: 6.00% |
||
*1 Total uncertainty includes contributions from Calibration Factor Uncertainty (CF), Linearity Uncertainty (L), Noise Uncertainty (N), Zero Offset Uncertainty (Z), Mismatch Uncertainty, and Temperature Uncertainty (T). All error terms must be converted to percentages for Total Uncertainty (RSS) calculation. Mismatch Uncertainty (Mm) requires knowledge of source match and should be expressed as a percentage using the equation Mm = 100 × [(1 ± Γsource × Γsensor)2 – 1].
*2 Use the following formula to determine Zero Offset Uncertainty as a percentage: Z = (Zero Offset Power / Nominal Power) × 100.
*3Nominal impedance = 50 Ω.
*4Equivalent-time Sampling requires repetitive pulses for accurate results.
|
Characteristic |
Description |
|---|---|
|
Maximum Average Power |
+20 dBm (100 mW) Damage Level: +23 dBm (200 mW) |
|
Maximum Pulse Power |
+20 dBm (100 mW) Damage Level: +23 dBm (200 mW) |
|
Measurement Rate |
2000/s (100 settled measurements per second typical) |
|
Trigger In / Trigger Out |
TTL compatible Damage Level: 5.5 V max, –0.5 V min Rate: 1 Hz to 750 kHz, typical |
|
USB Interface |
USB Version: 2.0 Full speed (11 Mb/s) |
System Requirements for Meter and High Speed Logger Software
|
Characteristic |
Description |
|---|---|
|
Typical Host Specifications |
- 2 GB RAM - USB 2.0 Port |
|
Operating System |
- Windows XP, Service Pack 3 - Windows Vista - Windows 7 (32-bit, 64-bit, or XP mode) |
Environmental
|
Characteristic |
Description |
|---|---|
|
Temperature |
|
|
Operating |
0 °C to +55 °C |
|
Nonoperating |
–25 °C to +85 °C |
|
Humidity |
|
|
Operating |
15% to 95% RH (Relative Humidity) at up to +30 °C 15% to 45% RH above +30 °C up to +55 °C; noncondensing |
|
Nonoperating |
15% to 95% RH at up to +30 °C 15% to 45% RH above +30 °C up to +85 °C; noncondensing |
|
Altitude |
|
|
Operating |
3,000 m (10,000 ft.) |
|
Nonoperating |
15,000 m (50,000 ft.) |
|
Electromagnetic Compatibility |
EMC Directive 2004/108/EC, EN 61326-2-1: 2006, CE |
Physical Characteristics
|
Dimension |
Description |
|---|---|
|
PSM3110, PSM3120, PSM3310, PSM3320, PSM3510, PSM4320, PSM4410, PSM5320, PSM5410 |
|
|
Diameter |
48 mm (1.9 in.) |
|
Length |
74 mm (2.9 in.), plus connector |
|
PSM4110, PSM4120, PSM5110, PSM5120 |
|
|
Diameter |
48 mm (1.9 in.) |
|
Length |
62 mm (2.4 in.), plus connector |
|
Weight |
|
|
PSM3110 PSM3310 PSM3510 |
164 g (5.78 oz.) |
|
PSM3120 PSM3320 |
203 g (7.16 oz.) |
|
PSM4110 PSM5110 |
110 g (3.88 oz.) |
|
PSM4120 PSM5120 |
149 g (5.26 oz.) |
|
PSM4320 PSM5320 |
163 g (5.75 oz.) |
|
PSM4410 PSM5410 |
124 g (4.37 oz.) |
