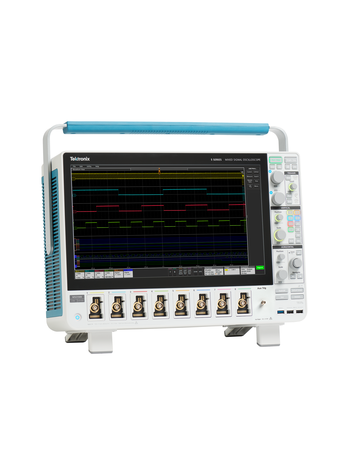

TEKTRONIX MSO58B + 5-SREMBD + 5-SRPM + TekScope-Ultimate Mixed Signal Oscilloscope (1GHz; 8 kênh; 6.25GS/s)

FlexChannel inputs: 8

Maximum analog channels: 8

Maximum digital channels (with optional logic probes): 64

Bandwidth (calculated rise time): 1 GHz (400 ps)

ADC resolution: 12 bits

Vertical resolution:

8 bits @ 6.25 GS/s

12 bits @ 3.125 GS/s

13 bits @ 1.25 GS/s (High Res)

14 bits @ 625 MS/s (High Res)

15 bits @ 312.5 MS/s (High Res)

16 bits @ ≤125 MS/s (High Res)

Sample rate: 6.25 GS/s on all analog / digital channels (160 ps resolution)

Record length (std.): 62.5 Mpoints on all analog / digital channels

Record length (opt.): 125, 250, or 500 Mpoints on all analog / digital channels

Waveform capture rate: >500,000 wfms/s

Arbitrary/Function Generator (opt.): 13 predefined waveform types with up to 100 MHz output

DVM: 4-digit DVM

Trigger frequency counter: 8-digit frequency counter

Include: 5-SREMBD (quantity x1), Installed option; Embedded serial triggering and analysis (I2C, SPI)

Include: 5-SRPM (quantity x1), Installed Option; Power management serial triggering and analysis (SPMI)

Include: TekScope-Ultimate (quantity x3), License; Ultimate License for TekScope PC Software; Perpetual License for 2 Individual Seats; Node Locked

Datasheet
