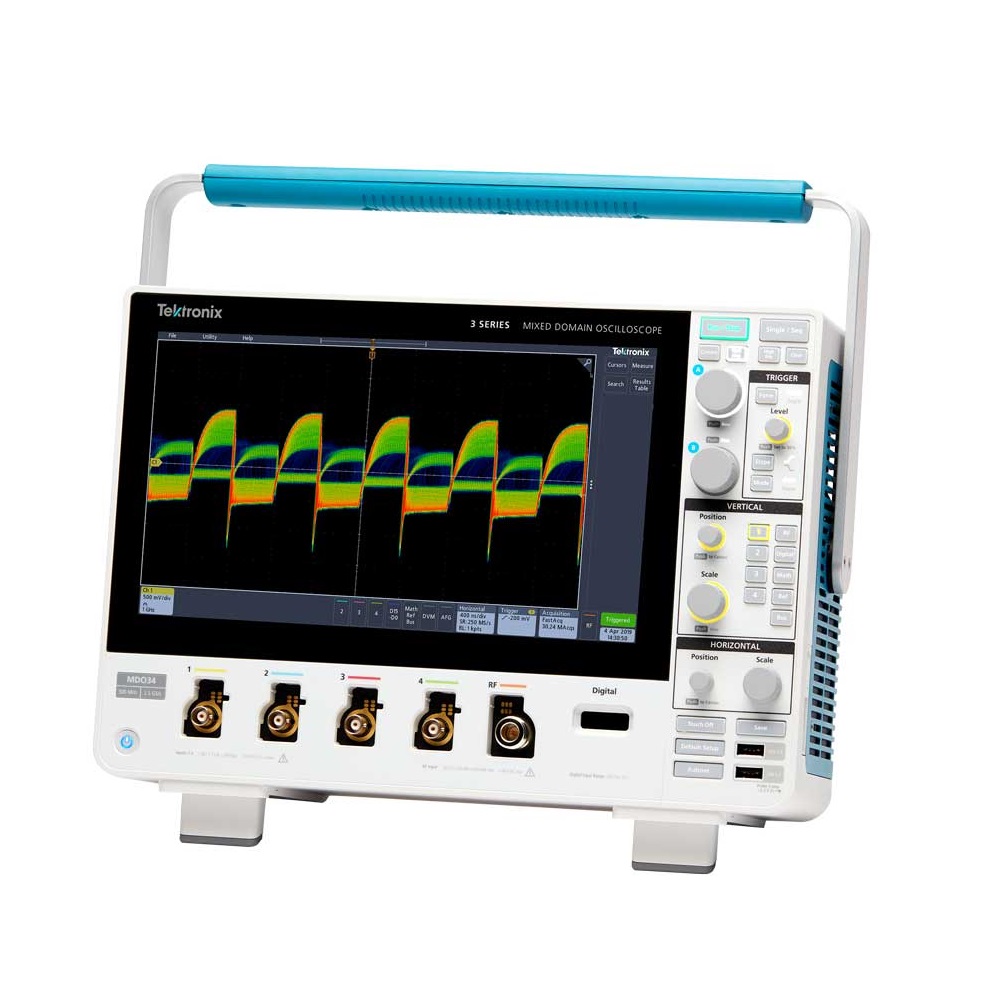

TEKTRONIX MDO34 Mixed Domain Oscilloscopes (Opt MDO34 3-BW-200, MDO34 R5 200Mhz, 4 CH, 2.5Gs/s)

Analog channel bandwidth: 200MHz

Analog channels: 4

Rise time (typical, calculated) (10 mV/div setting with 50 Ω input termination): 2ns

Sample rate: 2.5 GS/s

Record length: 10 M

Digital channels with 3-MSO option: 16

Arbitrary Function Generator outputs with 3-AFG option: 1

Spectrum analyzer channels: 1

Standard spectrum analyzer frequency range: 9 kHz - 1 GHz

Optional spectrum analyzer frequency range with 3-SA3 option: 9 kHz - 3 GHz

Hardware bandwidth limits:

+ ≥350 MHz models 20 MHz or 250 MHz

+ 100 MHz and 200 MHz models 20 MHz

Input coupling: AC, DC

Input impedance: 1 MΩ ±1%, 50 Ω ±1%

Input sensitivity range:

+1 MΩ 1 mV/div to 10 V/div

+50 Ω 1 mV/div to 1 V/div

Vertical resolution: 8 bits (11 bits with Hi Res)

Maximum input voltage

+1 MΩ 300 V RMS CAT II with peaks ≤ ±425 V

+50 Ω 5 V RMS with peaks ≤ ±20 V

Input/output ports:

- USB 2.0 high-speed host port: Supports USB mass storage devices and keyboard. Two ports on front and one port on rear of instrument.

- USB 2.0 device port: Rear-panel connector allows for communication/control of oscilloscope through USBTMC or GPIB (with a TEK-USB-488).

Dimensions: 252x370x148,6mm

Net weight: 5.31Kg

Included Standard Warranty Extended to 5 Years - MDO34 R5

Datasheet
