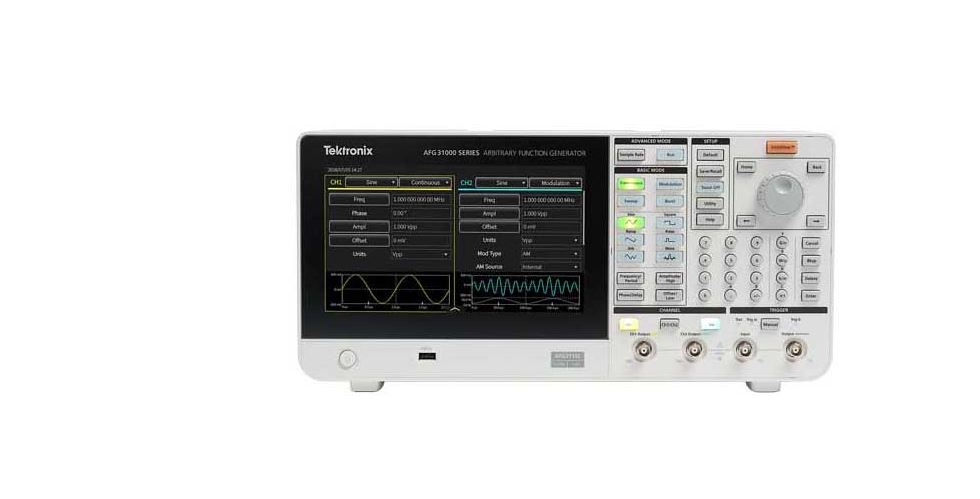

Amplitude
Range (into 50 Ω) ≤ 60 MHz: 1 mVP-P to 10 VP-P
> 60 MHz to ≤ 80 MHz: 1 mVP-P to 8 VP-P
> 80 MHz to ≤ 100 MHz: 1 mVP-P to 6 VP-P
Output impedance 50 Ω
Load impedance setting Selectable: 50 Ω, 1 Ω to 10.0 kΩ, High Z (Adjusts displayed amplitude according to selected load impedance)
Isolation 42 Vpk maximum to earth ground
Short-circuit protection Signal outputs are robust against permanent shorts against floating ground
Overcurrent protection When incoming current is greater than 250 mA, the output channels are protected with relays that disconnect
the AFG from the device under test. Connection can be resumed by user after removing the incoming current
Sine
Continuous mode 1 μHz to 50 MHz
Square: 1 μHz to 40 MHz
Ramp: 1 μHz to 800 kHz
Pulse: 1 μHz to 40 MHz
Arbitrary waveforms: 1 mHz to 25 MHz
Modulation AM, FM, PM, FSK, PWM
Waveform memory size16 Mpts (128 Mpts optional) each channel
Run mode
Standard: Continuous
Optional: Sequence, Triggered, Gated
Number of waveform entries
Continuous, Triggered, Gated: 1
Sequence: 1 to 256
Minimum waveform length168 pts
Waveform granularity1 pt
Vertical resolution14 bits
Jump/trigger events External trigger (rising or falling edge), manual trigger, timer, SCPI commands
Repeat count1 to 1,000,000 or infinite
Timer range2 µS to 3600 S
Timer resolution 4 ns or 8 digits
Dimensions
Height191.8 mm (7.55 in.) Width 412.8 mm (16.25 in.) Depth143.3 mm (5.64 in.)
Weight
Net 4.7 kg (10.4 lb.) Shipping 7.0 kg (15.4 lb.)
