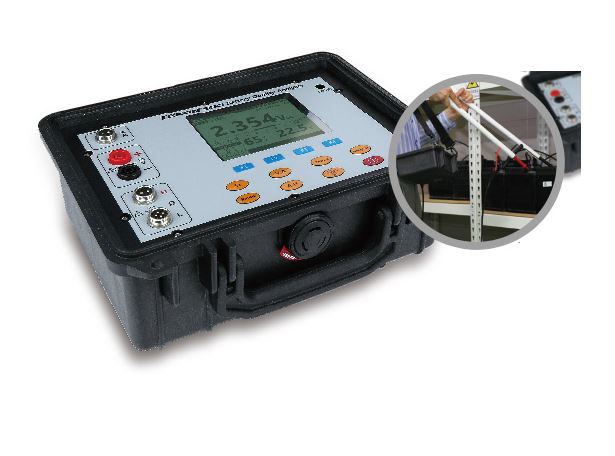

TEKON 950B Battery Quality Analyzer (300Ω, 500V, 400A, 0-2000Ah, 100%)

Measurement of resistance

Range: 3mΩ~300Ω

Resolution: 1uΩ~100mΩ

Measurable current: 100mA~0.1mA

Accuracy: ±0.5%rdg±10dgts ~ ±0.8%rdg±10dgts

DC/V

Range: 5, 50, 500V

Resolution: 1mV

Accuracy: ±0.5%rdg±5dgts

AC/V

Range: 0~500

Resolution: 100mV

Accuracy: ±0.75%rdg±10dgts

DC Current

Range: 4, 40, 400A

Resolution: 1mA

Accuracy: ±0.5%rdg±5dgts (+CT Tolerance)

AC Current

Range: 4, 40, 400A

Resolution: 1mA

Accuracy: ±0.75%rdg±5dgts (+CT Tolerance)

Measurement of capacity

Measuring method: Rated capacity, charge/discharge test

Range: 0~100%

Measurable capacity: 0~2000Ah

Parameters displayed: Efficiency, capacity, Ah, average current, chargedischarge time, graph Charge rate SOC (State of Charge) (for only model 950B)

Power (battery): 7.2V/5.2Ah Li-ion, 12V/2.5A DC adaptor

Data storage: 8MB

Communication: Bluetooth Ver2.1 + EDR Class2

LCD display: 4.0 monographic

Operating temp/humidity: 0°C±45°C, RH 85% max

Storage temp/humidity: -20°C±60°C, RH 85% max

Compliant standards: IEC 61010-1 CAT III 500V Pollution Degree 2; EN61326-1:2013

Dimension: 240(L)×198(W)×109(H) mm

Weight: 1.4kg

Standard accessories

Pin-type Kelvin Probe, Test lead, Li-ion battery (7.2V/5.2Ah), 12V/2.5A adaptor, zero-bar, portable bag, PC Program, User’s Manual, Current clamp (T130BE)/950B

Optional accessories

Current clamp (T130BE), Kelvin Probe, Extensible rod (500mm), Wireless printer
