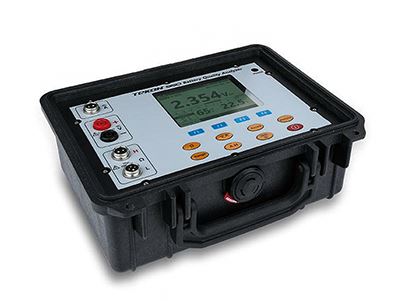

Tekon 950A Battery Quality Analyzer (300Ω, 500V,400A)

Measurement of resistance
Range:3mΩ~300Ω
Resolution: 1uΩ~100mΩ
Measurable Current: 100mA~0.1mA
Accuracy: ±0.5%rdg±10dgts ~ ±0.8%rdg±10dgts
DCV 5, 50, 500
Resolution: 1mV
Accuracy: ±0.5%rdg±5dgts
ACV 0~500
Resolution: 100mV
Accuracy: ±0.75%rdg±10dgts
DC Current 4, 40, 400A
Resolution: 1mA
Accuracy: ±0.5%rdg±5dgts (+CT Tolerance)
AC Current 4, 40, 400A
Resolution: 1mA
Accuracy: ±0.75%rdg±5dgts (+CT Tolerance)

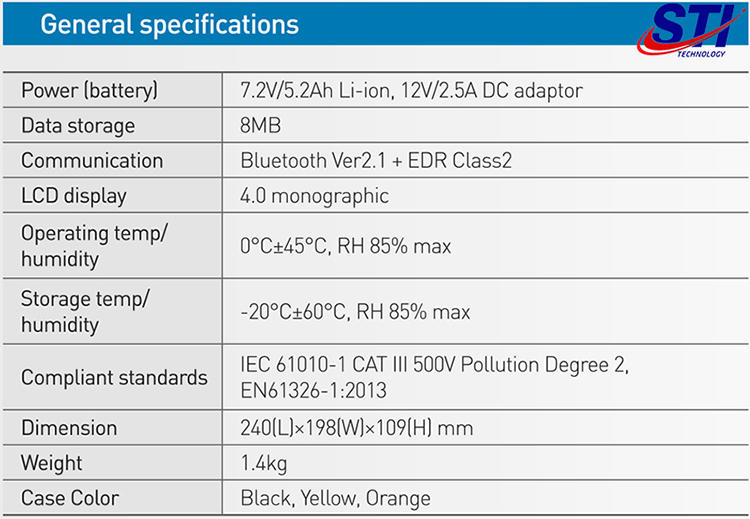

Power (battery) 7.2V/5.2Ah Li-ion, 12V/2.5A DC adaptor
Data storage 8MB
Communication Bluetooth Ver2.1 + EDR Class2
LCD display 4.0 monographic
Operating
temp/humidity
0°C±45°C, RH 85% max
Storage
temp/humidity
-20°C±60°C, RH 85% max
Compliant standards
IEC 61010-1 CAT III 500V Pollution Degree 2
EN61326-1:2013
Dimension 240(L)×198(W)×109(H) mm
Weight 1.4㎏
Accessories
Standard
Pin-type probe for measurement, test lead, Li-ion battery
(7.2V/5.2Ah), 12V/2.5A adaptor, zero-return adjuster, portable bag,
PC Program, User’s Manual, clamp-on (SCA256AD) for only model
950B
Optional Extensible rod (500mm), clamp (SCA256AD), clip-type Kelvin probe
