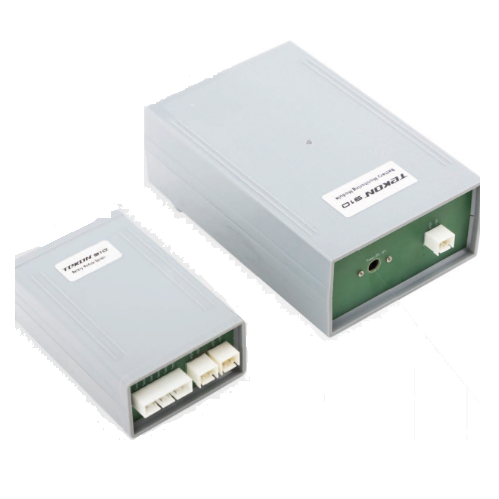

TEKON 910 ESS Battery Module Monitoring System

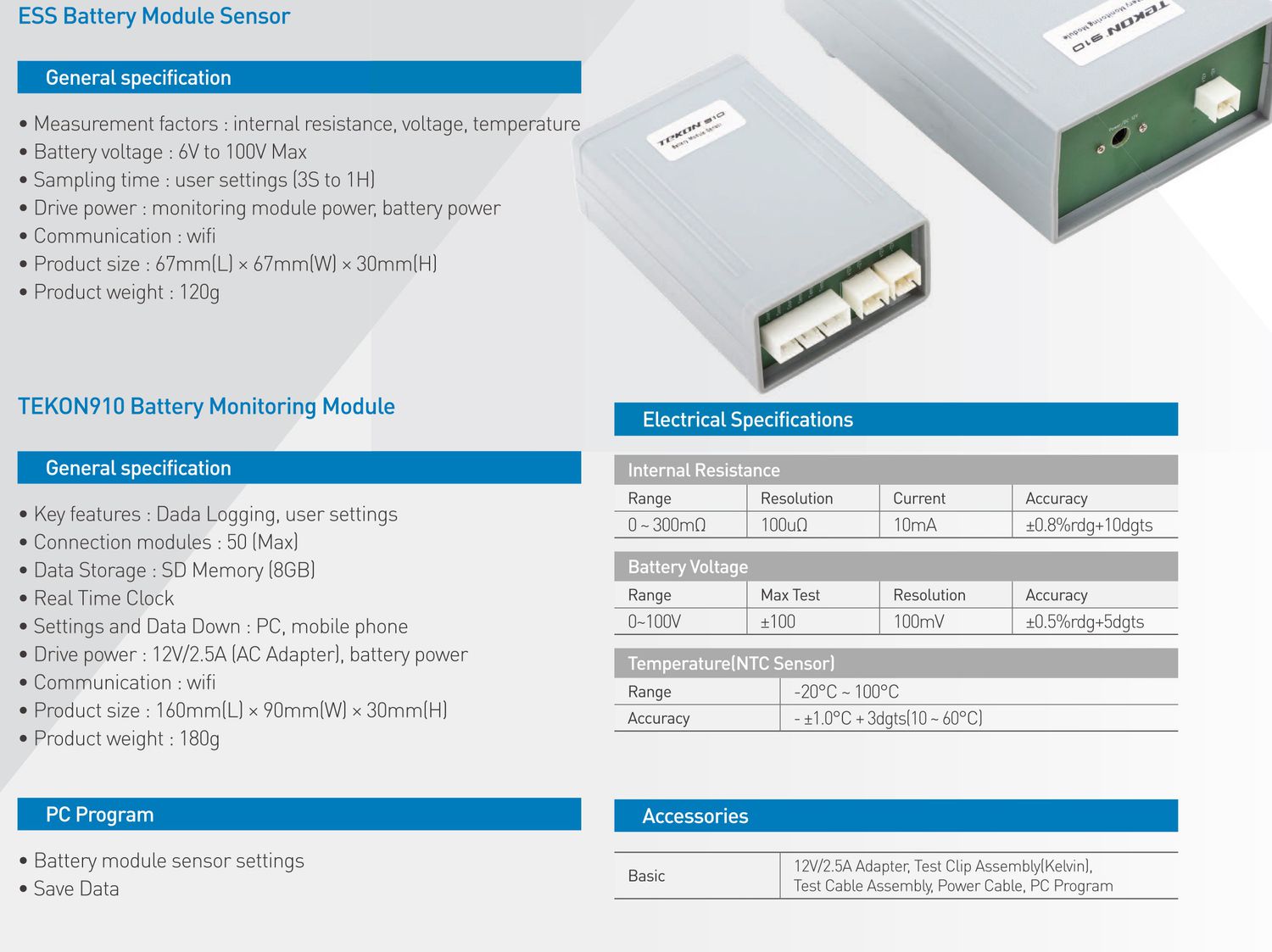

ESS Battery Module Sensor:

Measurement factors: internal resistance, voltage, temperature

Battery voltage: 6V to 100V Max

Sampling time: user settings (35 to 1H)

Drive power: monitoring module power, battery power

Communication: wifi

Product size: 67mm(L) x 67mm(W) x 30mm(H)

Product weight: 120g

TEKON910 Battery Monitoring Module:

Key features: Dada Logging, user settings

Connection modules: 50 (Max)

Data Storage; SD Memory 18GB)

Real Time Clock

Settings and Data Down: PC, mobile phone

Drive power: 12V/2.5A (AC Adapter, battery power

Communication: wifi

Product size: 160mm(L) x 90mm(W) x 30mm(H)

Product weight: 180g
