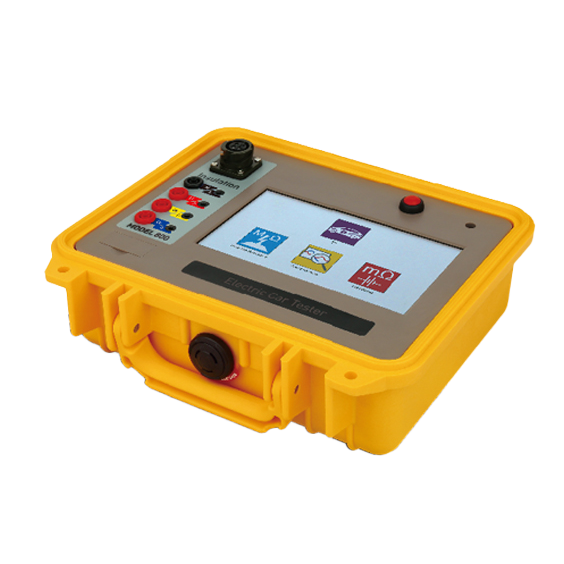

TEKON 800 EV, HEV Diagnosis

EV, HEV battery pack IBMSL motor control unit MCUL power, cable assembly sensor electrical performance diagnosis

Measurement of EV/HEV inspection items, including judgment of acceptable/hon- acceptable according to EWHEV inspection directives

Enables the user to download, view and analyze stored data, and makeup reports

Generates standardized inspected records and system performance reports

Measures internal resistance Iml of EV/HEV battery pack 1500V max

Measures three-phase power (1P2W, 3POW, 3P4W)

Measures waveforms (4 channels)

Measures harmonic spectrum (up to 50th harmonic)

Measures insulation resistance

Measures earth resistance (optional)

Removable wireless printer applied

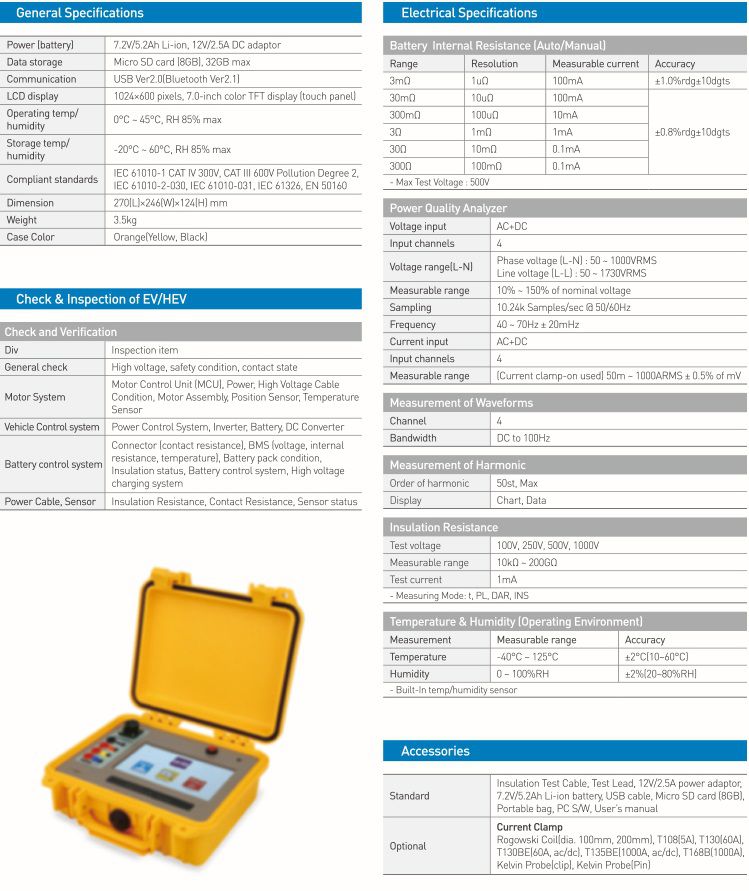

Detail
