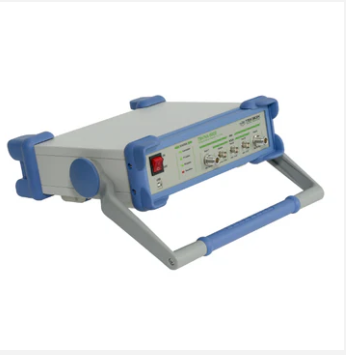

Tekbox TBVNA-6000 Vector Network Analyzer (1 Hz–6 GHz)

CW Signal generator 1 Hz – 6.0 GHz with 0.1 Hz resolution

Four channel 60 MHz digital oscilloscope with 125 Ms/s and 14 bit resolution.

1 Hz – 6 GHz spectrum analyzer, with an unambiguous frequency range of DC – 60 MHz and an active sideband suppression for spurious-free signal measurements up to 6 GHz (under certain conditions).

Dual channel spectrum analysis with cross correlation

IQ streaming receiver with file or ethernet streaming capabilities. (GNU radio compatible)

Power sweep measurements.

RF Wideband Power/Voltage measurements.

THD analyzer.

Phase noise analyzer.

General noise and bode measurements.

BODE adds two additional high impedance inputs with 1Mohm // 15 pF for gain /phase measurements and/or as vector voltmeter.

BODE adds an additional high voltage signal output (+/- 10V high impedance and +/- 5V into 50 Ohms) with a bandwidth of > 200 MHz (at full power)
