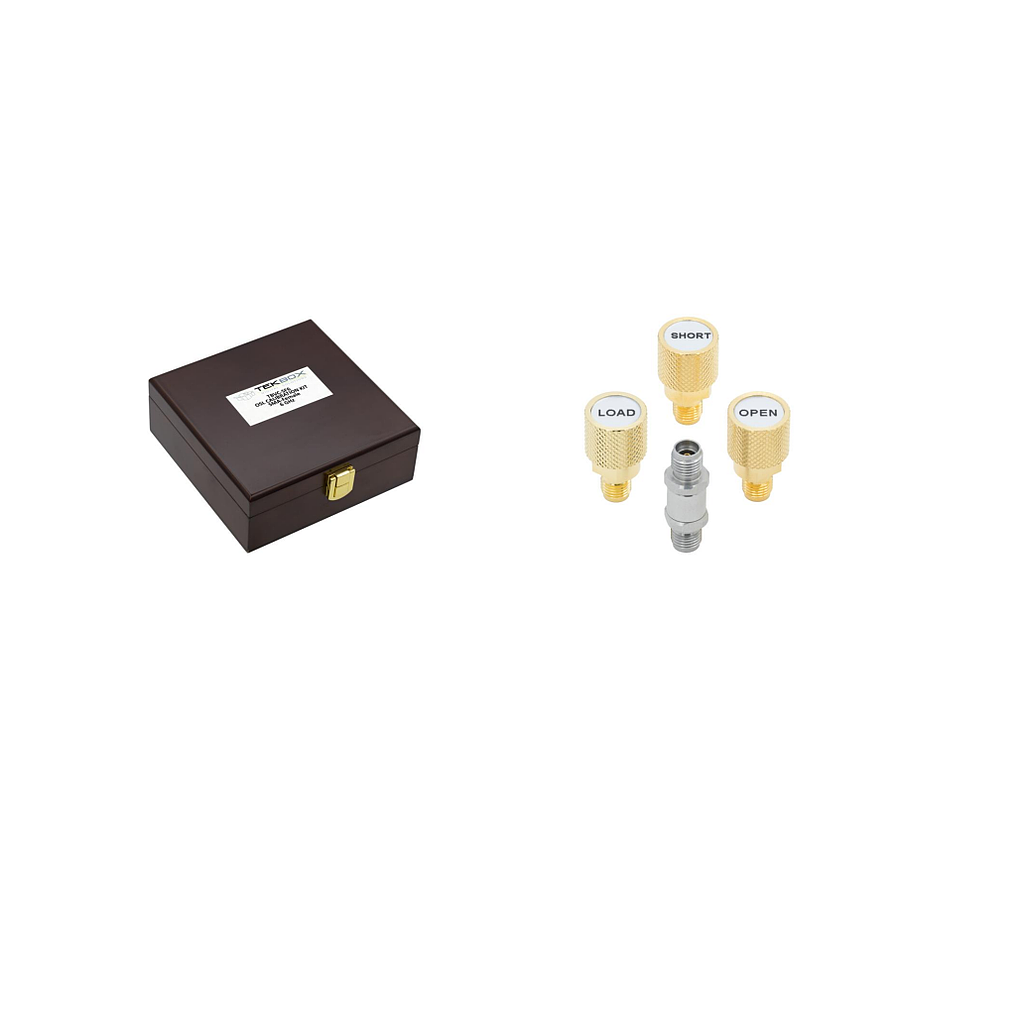

LOAD
Connector: 3.5 mm Female
Impedance: 50 Ω
Return loss: > 30 dB
THROUGH
Connector: 3.5 mm Female
Impedance: 50 Ω
Loss: 6.24 GΩ/s
Delay: 75.17 ps
SHORT
Connector: 3.5 mm Female
Impedance: 50 Ω
Delay: 48.586 ps
Loss: 7.08 GΩ/s
L0: 5.59 pH
L1: –8.5598e-21 H/Hz
L2: –3.092e-31 H/Hz²
L3: –1.77e-42 H/Hz³
OPEN
Connector: 3.5 mm Female
Impedance: 50 Ω
Delay: 46.378 ps
Loss: 6.14 GΩ/s
C0: 4.1 fF
C1: 6.4125e-24 F/Hz
C2: –2.78e-35 F/Hz²
C3: –2.593e-44 F/Hz³
Frequency range: DC – 6 GHz
Box dimensions: 145 mm × 145 mm × 55 mm
Weight: 340 g
