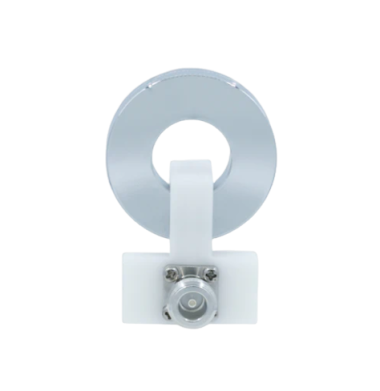

Tekbox TBRS101-RX Receiving loop antenna (30 Hz – 100 KHz)

Type: Passive Monitoring Loop Antenna

Frequency range: 30 Hz–100 KHz

Standards: MIL-STD-461G / RS101

Loop Diameter: 4.1cm

Loop construction: 51 turns of 7 strand 41 AWG Litz wire

DC resistance of the loop coil: 4.1 Ω (Nominal)

Self inductance of the loop coil: 180 µH

Output connector: N-female, 50 Ω

Antenna conversion factor: Within ±3 dB compared to the theoretical validation factor for

standard RS101 field monitoring loop in MIL-STD-461G

Mechanical Dimensions: L x W x H: 4.37 cm x 5.42 cm x 7.92 cm (1.72” x 2.13” x 3.12”)

Weight: 0.1 kg (0.22 lbs)
