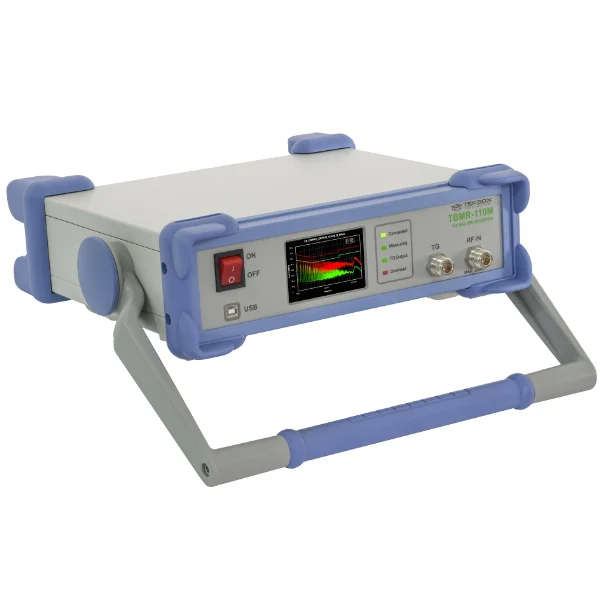

EMI Analyzer DC-110 MHz (Measurement Receiver)
- 162 dBm/Hz noise floor down to 1 kHz
7-band hardware pre-selector filter bank
30 dBm maximum input power
CISPR-16, ANSI and MIL-STD compliant detectors
Peak, Quasi-Peak, Average, CISPR-Average, RMS and CISPR-RMS detectors working in parallel.
Sweep, STFFT and direct parallel resolution bandwidth setting (-3 dB and -6dB)
Numerous predefined Standards, ready to load and use
Pre-measurement with selective Peak measurement
Direct fast compliant STFFT measurement
Many pre-defined transducers, antenna factors and various other compensation files
Many data manipulation, display and documentation features
Direct control from EMCView or standalone operation
Quick load of predefined setups
Spectrum Analyzer
True DC – 110 MHz measurement range
Tracking Generator
0.1 Hz to 3.5 MHz arbitrary RBW and VBW setting
Zero Span operation with time domain triggering
Linear, log amplitude and frequency display
Sweep, STFFT and direct parallel resolution bandwidth setting
Parallel RMS, Pos./Neg. peak and average detector
Trace Memory option, normalization
Equation based trace display
Peak hold
Noise marker, max and band power display
Quick load of predefined setups
Tracking Analyzer DC – 110 MHz
Linear and logarithmic sweep
-50 dBm to 0 dBm adjustable TG power
120 dB dynamic range
Use of power correction file and level correction file
Quick load of predefined setups.
Oscilloscope 250 MS/s, DC – 110 MHz
1 ns/DIV to 1 s/DIV horizontal resolution
Interpolated sampling up to 4 GS/s
Real-time Sampling up to 250 MS/s, 14 Bit
Up to 16 MS sampling size
Various Trigger options
Vertical CIC Filter option for noise reduction
Many automatic measurement features
Demodulator
Direct demodulation into the PC sound system
FM, AM and SSB demodulator
Adjustable bandwidth, center frequency and demodulator parameters
Automatic demodulation parameter measurements
IQ Stream Generator
GNU-Radio data source
Directly stream floating point I and Q data into file or network
Adjustable center frequency and bandwidth
Remote Control
Direct remote control of the EMI Analyzer over network
Text based protocol
EMCview compatible
