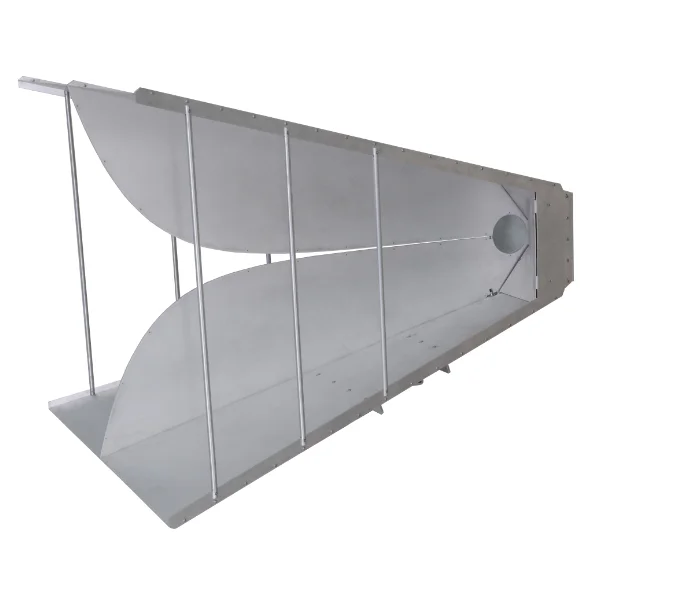

Type: MIL-STD double ridged horn
Frequency range: 200 MHz– 2000 MHz
VSWR: <2 (f > 270 MHz)
Isotropic gain at 1m spacing: 4.80 … 8.86 dBi
Antenna factor at 1m spacing: 11.27… 30.13 dB/m
Power handling (Peak/CW): 800 W Short-term (Peak) ; 500 W Continuous (CW)
Nominal impedance: 50 Ω
RF Connector: N type female
Optional Tripod: Model TBTP6
Mechanical Dimensions: L x W x H: 948.35mm x 952.6mm x 703.15mm (37.34” x37.50” x27.68”)
Weight: 16 kg (33 lbs)
