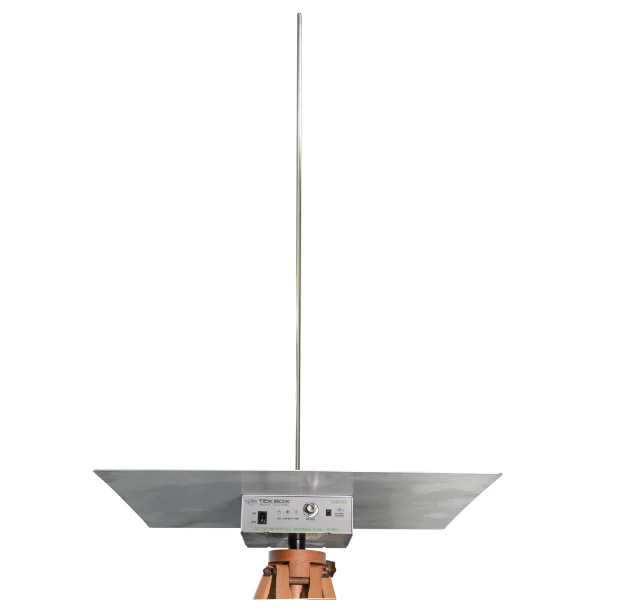

Tekbox TBMA5B Active Monopole Antenna (9 kHz ~ 30 MHz)

Characterized frequency range: 9 kHz to 30 MHz

Electric field antenna factor: +5 to +7 dB/m, typ.

Dynamic Range: 117 dB @ 10MHz, 9KHz RBW, AVG

Electric field, lower limit: noise floor at -3 dBµV/m @ 10MHz, 9 KHz RBW, AVG

Electric field, upper limit: 120 dBµV/m (1 V/m) @ 1 dB compression

Output VSWR: 1.04 to 1.6 :1

Output connector type: N female

Battery type: 12 x NiMH, AA (not included)

Battery life on average: up to 20 hours, depending on the battery capacity

Charger: Mascot 2116 6-12 Cells

Tripod mount: ¼” thread

Impedance converter dimensions: 185 x 210 x 65 mm, 1.5 kg

Carrying Case: Aluminum, 75 x 73 x 18 cm, 4 kg
