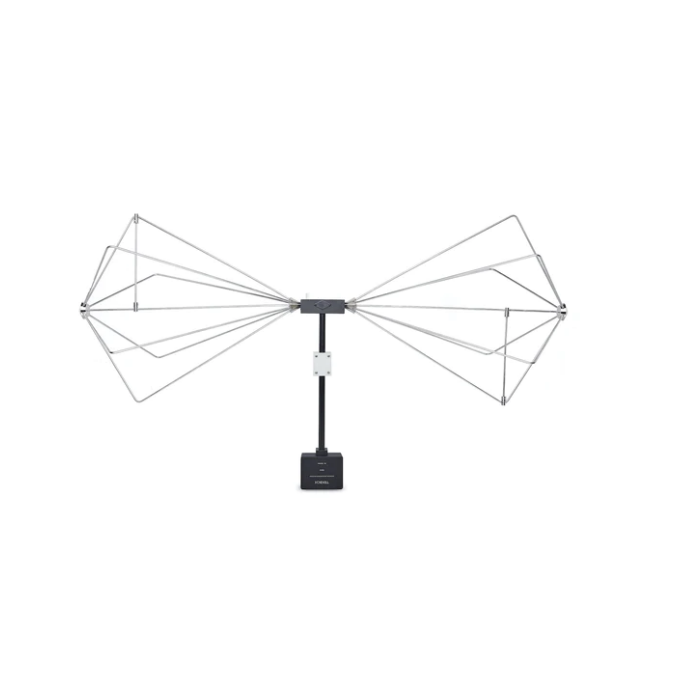

Tekbox TBMA2 Biconical Antenna

Type: passive biconical

Frequency range: 30 MHz– 300 MHz

Nominal impedance: 50 Ω

Balun: 1:4

Maximum continuous input RF power: 100 W

Connector: N type female

Isotropic Gain: -12.51 to 0.55, see Figure 2 and Table 1

Antenna Factor: 10.8 to 26.3, see Figure 3 and Table 1

Voltage Standing Wave Ratio (VSWR): 1.05 to 38.05, see Figure 4 and Figure 5

Test standards: FCC, CISPR, SAE, RTCA-DO-160, Mil STD-461, etc.

Length: 138.7 cm (54.6 ") tip

Diameter: 54.2 cm (21.3 ")

Depth: 80.3 cm (31.6 ") including balun

Weight of one radiating element: 1.28 kg (2.82 lbs)

Weight of holder/balun: 0.96 kg (2.12 lbs)
