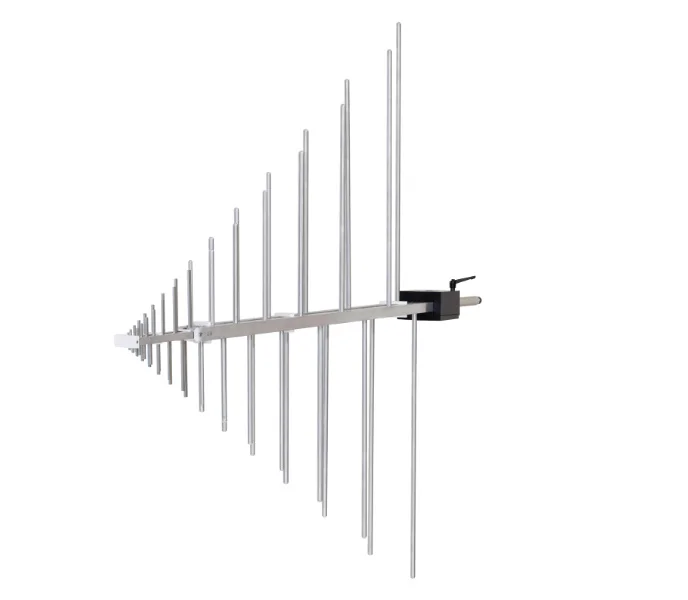

Type: logarithmic periodic
Frequency range: 130 MHz– 6000 MHz
VSWR: < 2.1:1 over the entire frequency range ; 1.45:1 average
Isotropic gain at 3m spacing: 4 …. 8.5 dBi
Antenna factor at 3m spacing: 7… 41 dB/m
Maximum continuous input RF power: 130W
Nominal impedance: 50 Ω
RF Connector: N type female
Mounting: 22 mm diameter mounting shaft (tube)
Mechanical Dimensions: L x W x H: 1296 mm x 1140 mm x 100 mm (51.02” x 44.88” x 3.94”)
Weight: 3.3 kg (7.27 lbs)
