Input / Output: 50 Ohm, N female
Supply Voltage range: 110 V…240 V
Supply power consumption: 15 W
Operating temperature range: -20°C to 60°C
Frequency range: 50 MHz – 1 GHz, (3MHz – 1.3GHz with reduced output power capability)
Gain: 36dB typ., see table 1 for details
1dB output compression point @ 10MHz: +29.5 dBm typ.
1dB output compression point @ 100 MHz: +30.9 dBm typ.
1dB output compression point @ 500 MHz: +31.3 dBm typ.
1dB output compression point @ 1 GHz: +28.7 dBm typ.
Noise figure: 2.5 dB typ.
2nd harmonic, 50MHz, Pout=30dBm: < – 50 dBc typ
2nd harmonic, 200MHz, Pout=30dBm: < – 40 dBc typ
3rd harmonic, 50MHz, Pout=30dBm: < – 30 dBc typ
3rd harmonic, 200MHz, Pout=30dBm: < – 25 dBc typ
Total harmonic distortion:
0.85% @200MHz, Pout=27dBm typ.
1.13% @200MHz, Pout=28dBm typ.
2.33% @200MHz, Pout=29dBm typ.
5.6% @200MHz, Pout=30dBm typ.
Third order intercept point:
+50dBm, @200MHz, ∆ f = 200kHz typ.
Input return loss:
50 MHz: 11dB typ.
800 MHz: 16dB typ.
Output VSWR:
50 MHz: 2.1:1
800 MHz: 1.4:1
Maximum ratings:
Maximum input power: +5 dBm

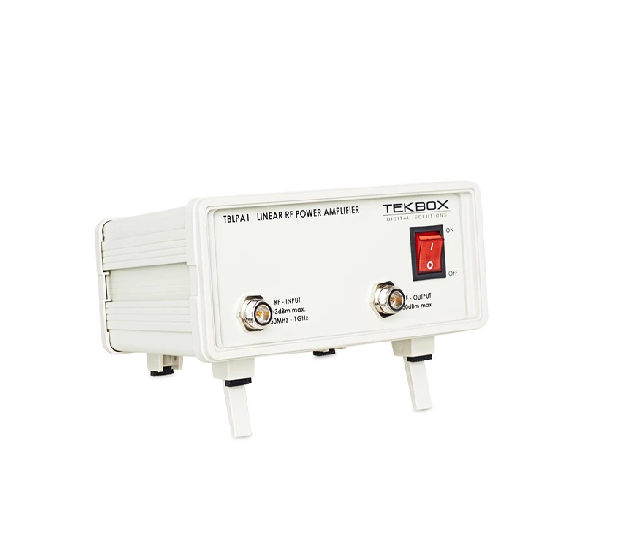

The output of the TBLPA1 is quite tolerant to output mismatch, however open or shorted load is not recommended, potentially can cause damage.
