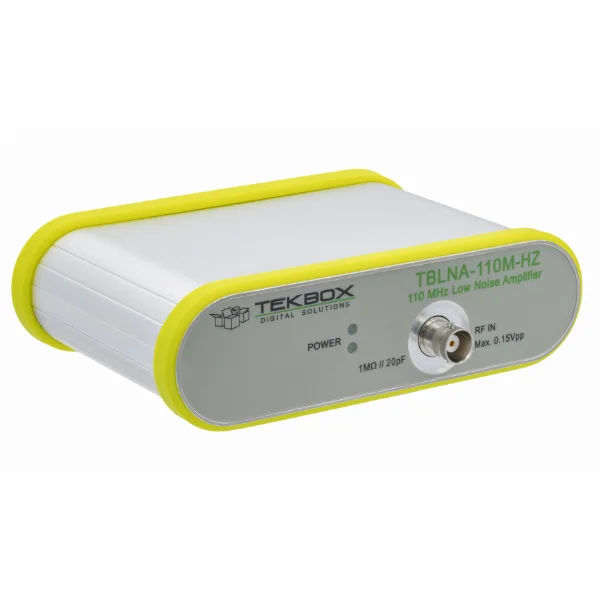

General specification
Flat frequency range: DC – 110 MHz, typ.
3 dB frequency range: DC – 500 MHz, typ.
Usable frequency range: DC – 1 GHz
Gain: 0 dB, 20 dB
RF-connectors: BNC-female
Input specification
Input impedance: 1 MΩ // 20 pF
Input Noise Voltage: >2 MHz: typ. <10 nV/√Hz; for details see chapter 3.3
Maximum input level for linear output:
150 mVpp for output saturation at the 20 dB gain output, 1:1
1.5 Vpp for output saturation at the 20 dB gain output, 1:10
1.5 Vpp for output saturation at the 0 dB gain output, 1:1
15 Vpp for output saturation at the 0 dB gain output, 1:10
Maximum ratings: 50 Vpp AC
Output specification
Output impedance: 50 Ω, detailed plots in chapter 3.2
Output return loss: > 25 dB, detailed plots in chapter 3.2
P1dBout:
+8.6 dBm (1.7 Vpp), 20 dB gain output
+8.6 dBm (≈1.7 Vpp), 0 dB gain output
IP3out:
+19 dBm, 20 dB gain output
+19 dBm, 0 dB gain output
DC offset: < 10 mV output offset
Supply specification
Power-connector: Coaxial power socket; 2 mm / 5.5 mm; positive center conductor
Indicator LEDs: Power ON, Power Good
Operating voltage: 12 V; external power supply 100 V – 240 V, 50/60 Hz
Current consumption: 275 mA
Operating temperature range: -20 °C to +50 °C
Dimensions: W 135 mm x H 40 mm x L 110 mm
Weight: 350 g
