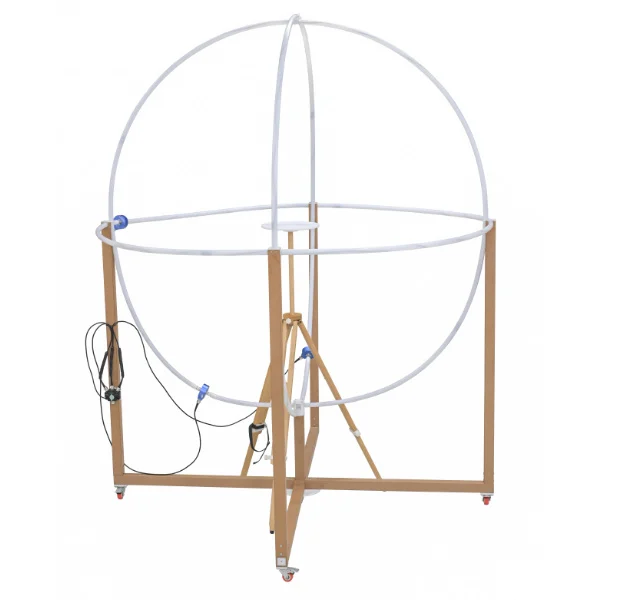

Tekbox TBLLA-2M Large Loop Antenna (9 KHz – 30 MHz)

Type: Large Loop Antenna (triple loop)

Frequency range: 9 kHz– 30 MHz

Standards: CISPR 16-1-4, CISPR 15

Loops: 3 perpendicular loops with 2m diameter

Loop construction: RG223U sections with over-molded slits inside PEX tube

RF transducer transfer impedance: typical 0 dBΩ ; 1V/A @ 9kHz to 30 MHz

RF transducer output connector: N-female, 50 Ω

Antenna validation factor: within ±2 dB compared to the theoretical validation factor for 2m diameter LLA given in CISPR 16-1-4

Effective antenna correction factor: 0 dB

CM resistance of the ferrite absorbers: > 200 Ω @ 10 MHz

Mechanical Dimensions: L x W x H: 2062 mm x 2062 mm x 2547 mm (81.2” x 81.2” x 100”)

Weight: 25 kg (55.12 lbs)
