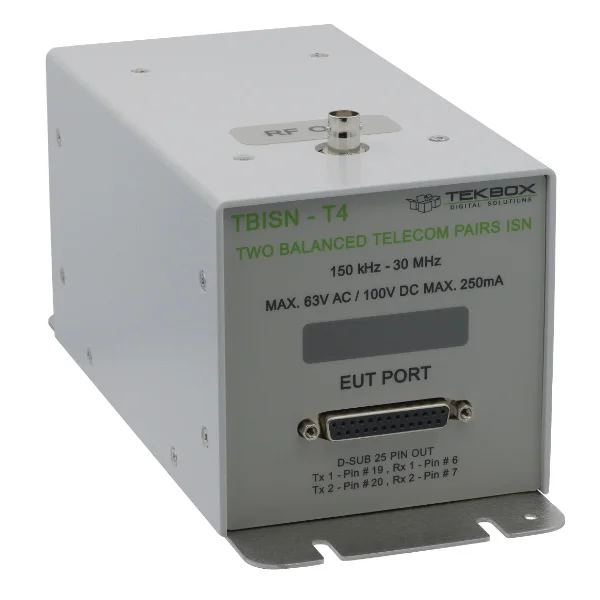

Frequency Range: 150 kHz – 30 MHz
Impedance (asymmetric): 150 Ω± 20 Ω
Phase (asymmetric): 0° ± 20°
Longitudinal Conversion Loss (LCL): CISPR 22 item 9.6.2.c)1) page 24
Voltage Division Ratio (VDF) for asymmetrical voltage: 10 dB +/- 1 dB
EuT, AE Terminals: D-SUB 25
Measuring Port: 50Ω BNC
Max. Voltage: 63V AC / 100V DC
Max. Current: 250mA
Insertion Loss (Differential Mode): < 3dB
Decoupling AE-EuT: 150kHz to 1.5 MHz > (35dB to 55dB); > 1.5MHz ( > 55dB)
Outer dimensions (W x H x D): 100 x 100 x 235 mm
Weight approx.: 1.0 kg
According to standards: CISPR 16-1-2,CISPR 22,CISPR 32 & CISPR 15
Operating Temperature: +5° C to 40°
Relative humidity: up to 80%
