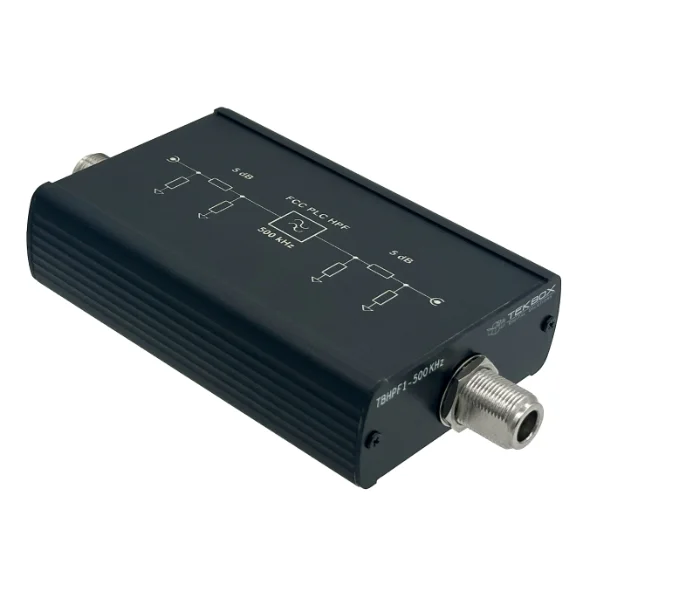

Filter topology: High Pass Filter, symmetric, 50 Ohm, 13 th order Cauer
Attenuator: Integrated; 2 x 5 dB
Nominal frequency range: 9 kHz – 30 MHz
3dB bandwidth: 540 kHz – 70 MHz
Stopband suppression: 9 kHz – 450 kHz < 60 dB (70 dB including attenuator), typ.
Input return loss, S11 (S22): 500 kHz – 30 MHz: < -20 dB, typ.
Impedance: 500kHz – 30 MHz: 50 Ω ± 10%, typ.
IP3out : f1 = 350 kHz, f2 = 400 kHz: +44 dBm, typ.
Filter capacitor voltage rating: 100V
Maximum input power: 10W
Connectors: N-Female
Dimensions: 80 x 35 x 150 mm
Weight: 350g
