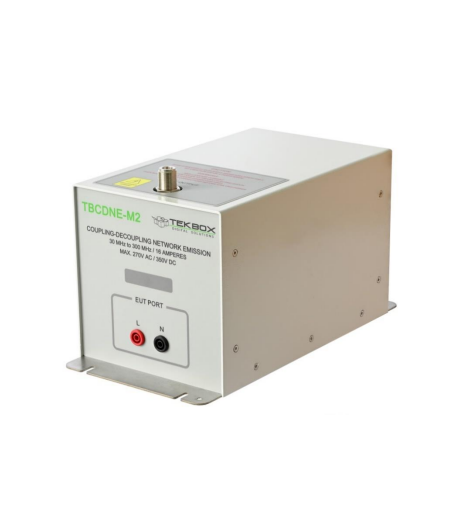

Tekbox TBCDNE-M2 Coupling Decoupling Network Emission (For Emission)

Compliance: CISPR 15 (IEC / EN 55015) Edition 9, CISPR 16-1-2, CISPR 16-2-1

Maximum supply voltage: 300V AC, 600V DC

Maximum current: 16A

Frequency range: 30 MHz – 300 MHz

Common mode impedance: 150 Ω +10 / – 20 Ω (EUT port)

Phase response: 0° ± 25° (EUT port)

Differential mode impedance: 100 Ω ± 20 Ω (EUT port)

Voltage Division Factor: 20 dB ± 1.5 dB (EUT to RF output)

AE to EUT decoupling: > 30 dB

AE to RF output decoupling: > 30 dB

RF output connector: N – female

EUT / AE connectors: 4 mm banana safety jacks, 4 mm slots in base plate for GND connection

Housing material: powder coated aluminium, stainless steel base plate

Dimensions: 300 x 150 x 150 mm

Weight: ca. 2.5 kg

Included: NIST traceable calibration data

Optional accessories:

Adapter panel with shorting bar and N-connector

50 Ω to 150 Ω adapter panel for VDF measurement / calibration

OSL adapters for common mode impedance measurement / calibration

Balun and OSL adapters for differential mode impedance measurement / calibration
