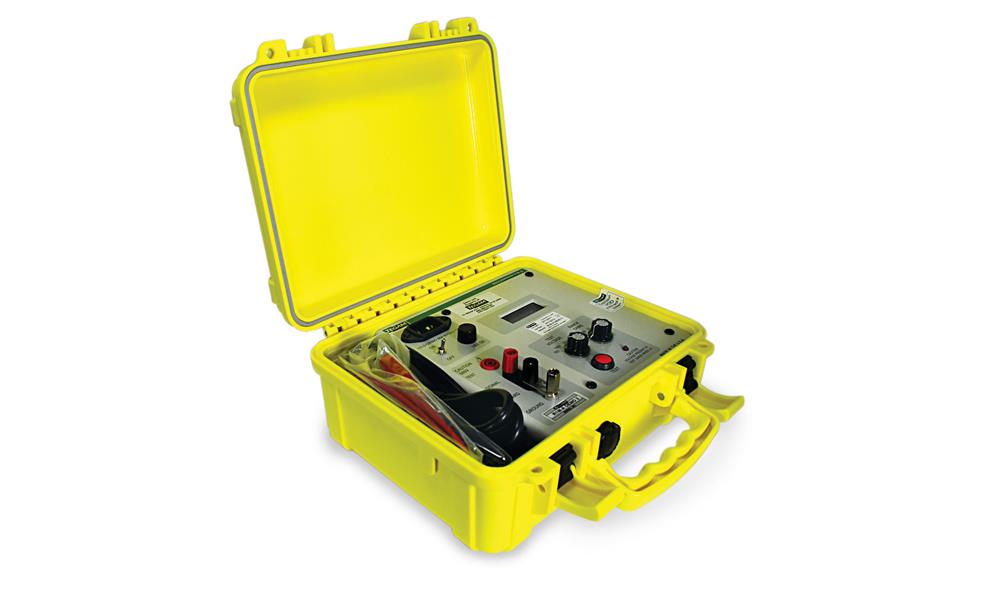

TEGAM R1M-A Megohmmeter (1 MΩ ~ 100 GΩ)

Resistance Ranges:

1 MΩ ; 1 GΩ

10 MΩ ; 10 GΩ

100 MΩ ; 100 GΩ

All ranges include 100 % over-range capability;

minimum resistance readable is 5 % of the selected range.

Test Voltages:

50, 100, 250, and 500 VDC

50 V max. to be used with resistance < 1 MΩ

Short circuit current: < 6 mA

Accuracy*:

Test Voltages: Within ± 3 % of specified value

Resistance Value: Within ± 5 % of reading

Recommended Calibration Cycle: 1 year

Environmental:

Operating Temperature: 0 °C to 50 °C, 75 % ± 5 % RH, Non-condensing

Storage Temperature: -40 °C to 71 °C, 95 % ± 5 % RH, Non-condensing

Power and Physical:

Power: 103.5-129 VAC, 50/60 Hz

Size: 10”W x 4.9”H x 9”D

Weight: 6 lb (2.7 kg)

Included Accessories:

Test HV Cable, Test Signal Cable, Line Cord

Operator and Maintenance Manual
