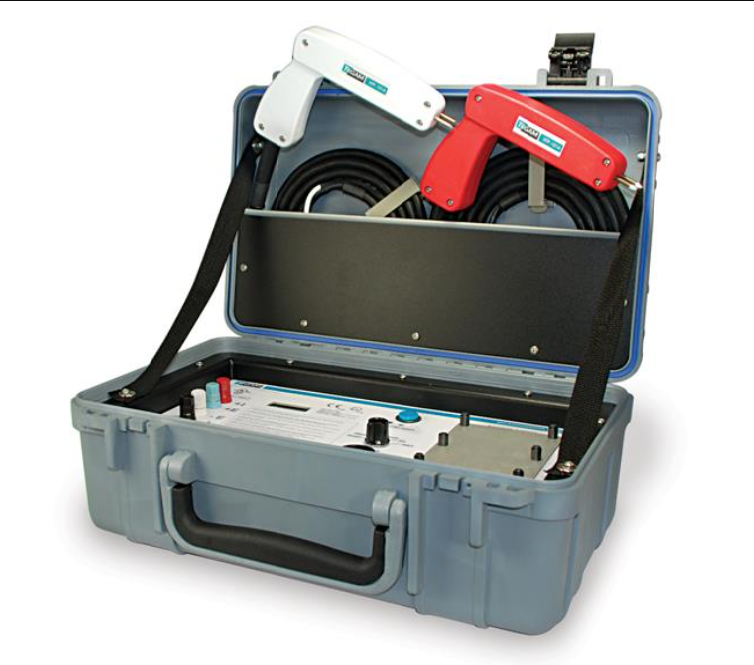

TEGAM R1L-E2A Intrinsically safe milli-ohmmeter and bond (1.999 mΩ~19.99 Ω)

Resistance Ranges and Test Currents

Full Scale/ Resolution/ Accuracy/ Test Current

1.999 mΩ/ 1 μΩ/ 0.1% of Reading ± 2 Counts/ 1.3 A

19.99 mΩ/ 10 μΩ/ 0.1% of Reading ± 2 Counts/ 130 mA

199.9 mΩ/ 100 μΩ/ 0.1% of Reading ± 2 Counts/ 13 mA

1.999 Ω/ 1 mΩ/ 0.1% of Reading ± 2 Counts/ 1.3 mA

19.99 Ω / 10 mΩ/ 0.1% of Reading ± 2 Counts/ 130 μA

Recommended Calibration Cycle: 1 year

Physical and Power:

Operating Temperature: -20˚C to + 50˚ C

Storage Temperature: -40˚C to + 71˚ C

Size: 17.5”W x 11.5”D x 7.1”H

Weight: 18 lbs, including HTP-101A probes

Power: 3 Alkaline D Cells Approved for R1L-E2A

Battery Life: Approximately 80 Hours of Use
