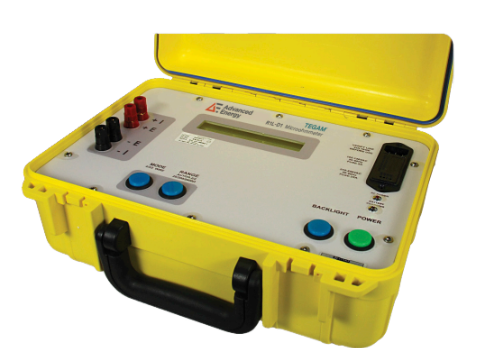

TEGAM R1L-D1 High accuracy micro-ohmmeter and RTD monitor (1.99999 mΩ ~ 1999.99 Ω)

Resistance Ranges and Test Currents

Full Scale/Resolution/ Accuracy / Test Current

199.999 mΩ / 1 μΩ / ±(0.05% of reading ± 15 count)/ 50 mA

1.99999 mΩ/10 μΩ / ±(0.05% pf reading ± 2 count)/ 50 mA

19.9999 mΩ/0.1 mΩ/ ±(0.05% of reading ± 1 count)/ 50 mA

199.999 Ω /1 mΩ /±(0.05% of reading ± 1 count)/ 0.5 mA

1999.99 Ω/10 mΩ/ ±(0.05% of reading ± 1 count)/ 0.5 μA

Physical and power

Operating Temperature: 0 to + 50˚ C

Storage Temperature: -40˚C to + 71˚ C

Size: 14" (W) x 11" (H) x 6" (D)

Weight: 8 lbs

Power: 120/240VAC 50/60 Hz; Batteries: 05 rechargeable NiCad batteries(included)
