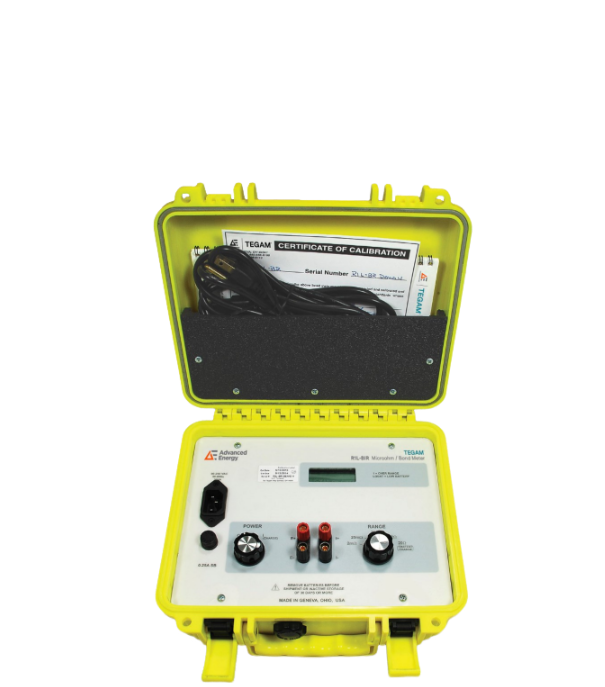

TEGAM R1L-BIR Micro-ohmmeter and bond meter (1.999 mΩ ~ 19.99 Ω, 10”W X 5”H X 9”D)

Resistance Ranges and Test Currents

Full Scale/ Resolution/ Accuracy/ Test Current

1.999 mΩ /1 μΩ /±(0.25% of reading + 1 count)/ 1.4 A

19.99 mΩ /10 μΩ/ ±(0.25% of reading + 1 count)/140 mA

199.9 mΩ/100 μΩ /±(0.25% of reading + 1 count)/ 14 mA

1.999 Ω / 1 mΩ/±(0.25% of reading + 1 count)/1.4 mA

19.99 Ω/ 10 mΩ/±(0.25% of reading + 1 count)/140 μA

Reactive loads not to exceed 2mH or 100µF with a minimum of 5µΩ per µH of series resistance.

Recommended Calibration Cycle: 1 year

Environmental

Operating Temperature: 0 to + 50˚ C

Storage Temperature: -40˚C to + 71˚ C

Physical and power

Size: 10" (W) x 5" (H) x 9" (D)

Weight: 6.7 lbs

Power: 120/240VAC 50/60 Hz; 3 High Capacity ‘C’ NiCad rechargeable batteries included
