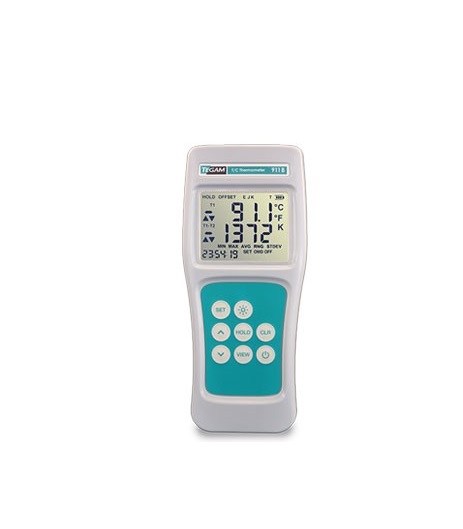

TEGAM 911B Thermocouple Thermometer (±(0.04% |rdg| + 0.3 °C), Single input)

Basic Accuracy*: ±(0.04% |rdg| + 0.3 °C)

Recommended Calibration Cycle: 2 years

Temperature Ranges:

K: -200 to 1372 °C (-328 to 2502 °F, 73 to 1645 K)

J: -210 to 1200 °C (-346 to 2192 °F, 63 to 1473 K)

T: -250 to 400 °C (-418 to 752 °F, 23 to 673 K)

E: -250 to 1000 °C (-418 to 1832 °F, 23 to 1273 K)

Connector Type: Mini-TC

Probe Zero Function: Resolution 0.1 °C/°F/K

Display: 4-Digit Auto-Resolution (0.1°<1000°, 1° ≥1000°) with Backlight and Function Annunciators

Reading Rate: 3/sec. for Readings and TREND indicators

Battery Type: 3 AA (IEC LR6, ANSI 15) Alkaline

Battery Life: 2000 Hours

Statistics: Min, Max, Avg, Rng, T1-T2 and Std Dev

Clock: Elapsed Statistics Run Time

Operating Environment:

• Temperature: -20 to 55 °C | -4 to 131 °F

• Humidity: 5 to 95%, 10 to 30 °C | 5 to 95%, 50 to 86 °F

• Altitude: 0 to 4600 m | 0 to 15,092 ft.

• Vibration: Random 10-500 Hz, 0.03 g2/Hz

• Shock: 30g Half Sine

• Drop: 4 drops from 1 m to concrete

Dimensions: 193 X 84 X 28 mm | 7.6 X 3.3 X 1.1 in.

Weight (including batteries): 300.9 g (10.6 oz.)

Included Accessories: 3 AA Batteries, Quick Start Guide, Certificate of Traceability

Optional Accessories: Tilt Stand/Magnet/Hanger, Foam-Filled Hard Carry Case, Developers’ Kit, Printed Manual
