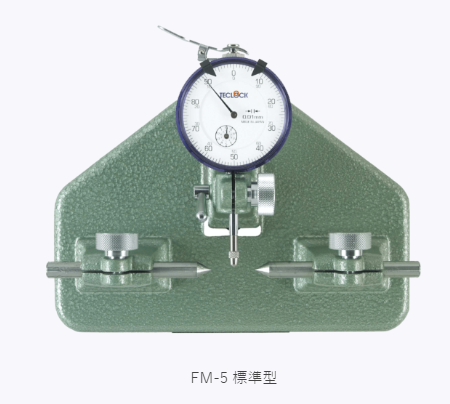

TECLOCK FM-5H Small Bench Center (1mm/0.001mm; High Precision Type)

Manufacturer: TECLOCK

Model: FM-5H

Origin: Japan

Warranty: 12 months

Measuring Range: 1 mm

Graduation: 0.001 mm

Indicator Error: ±0.005 m

Measuring Force: ≤ 1.5 N

Applicable Dimension:

+ Diameter: Up to φ60 mm

+ Width: Up to 60 mm

Weight: 2 kg

Catalog

 • Suitable to measure eccentricity volume (swing) of various precision shafts, round manufactured work piece, precision gears and pinions.

 • Convex and concave of center can be easily changed according to shape of work piece. Center can be shifted.

 • Standard type (graduation 0.01mm) and precision type (graduation 0.001mm) are available
