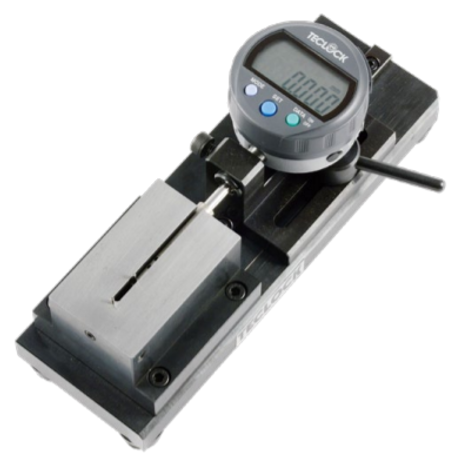

TECLOCK Digital Inside Comparator FM-55J (4～55mm/0.001mm)

Manufacturer: TECLOCK

Model: FM-55J

Origin: Japan

Warranty: 12 months

Measuring Range: 4～55 mm

Resolution: 0.001 mm

Accuracy: 0.003 mm

Measuring Force: 1.5 N or less

Catalog

 • These are exclusive equipments which comparatively measure dimension of internal diameter and outer diameter.

 • After placing master gauge on measuring table and setting up standard value (zero point set up), tolerance judging measurement against standard value is possible by measuring work piece.

 • Cemented carbide is provided to stylus and anvil (anvil pin).
