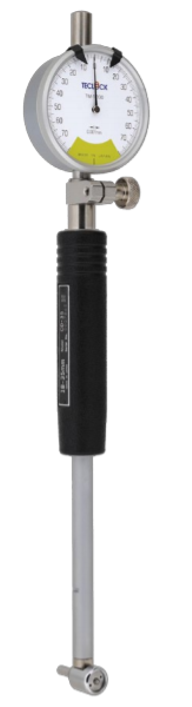

TECLOCK CD-150S Bore Gauge (50-150mm)

Manufacturer: TECLOCK

Model: CD-150S

Origin: Japan

Warranty: 12 months

Measuring Range: 50-150 mm

Effective Measuring Range: 1.6 mm

Probe Depth: 50 mm

Total Range Error: 0.002 mm

Measuring Force: ≤ 5 N

Number of Anvils: Incream 11pcs./5mm

Number of Washers: 4

Weight: 230 g

Catalog

• Compliance with JIS B 7515A.

• Anvil and Contact point are using the carbide ball.

• The measuring depth can be extend using the extension rod to measure a deep hole.
