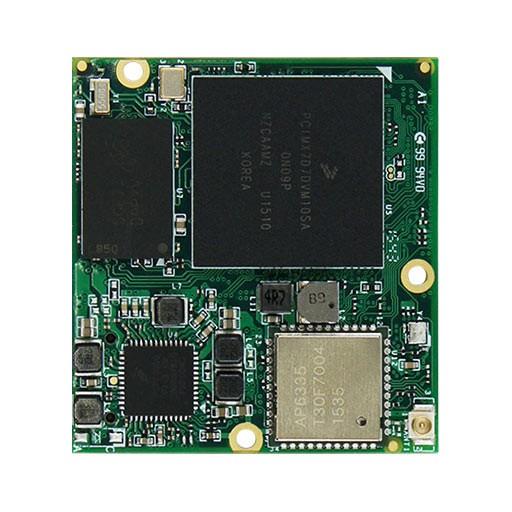

TechNexion PICOIMX7DR05MSD System-On-Modules - SOM PICO SOM NXP I.MX7 DUAL 1GHZ + 512MB RAM + SD CARDSLOT
Manufacturer: TechNexion Model: PICOIMX7DR05MSD - Contact
Frequency: 200 MHz, 1 GHz
Dimensions: 40 mm x 36 mm
Form Factor: PICO
Installed RAM: 512 MB
Interface Type: Bluetooth, CAN, GPIO, I2C, I2S, MIPI-CSI, MIPI-DSI, PCIe, PWM, RGMII, SATA, SDIO, SPI, UART, USB, USB OTG, WiFi
Processor Type: i.MX 7Dual
Processor Brand: NXP
Maximum RAM Capacity: 512 MB
Operating Supply Voltage: 4.2 V to 5.25 V
Maximum Operating Temperature: + 60 C
Minimum Operating Temperature: 0 C
