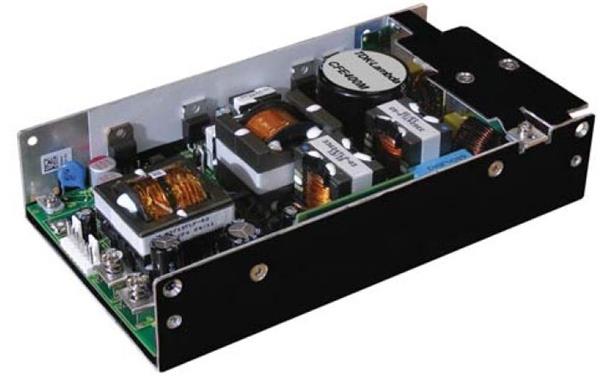

TDK-Lambda U7Y0123 Regulated 48V8.3A 400W NoCover 12V fan supply

Width: 100 mm

Height: 71.2 mm

Length: 177.8 mm

Industry: Medical, Industrial

Approvals: EN60601-1, ES60601-1

Compliance: EN60601-1, ES60601-1

Efficiency: 94 %

Unit Weight: 710 g

Output Power: 400 W

REACH - SVHC: Details

Input Voltage: 85 VAC to 264 VAC

Mounting Style: Chassis

Input Frequency: 47 Hz to 63 Hz

Load Regulation: Regulated

Isolation Voltage: 4 kVrms

Number of Outputs: 1 Output

Open Frame/Enclosed: Open Frame

Output Current-Channel 1: 6.25 A

Output Voltage-Channel 1: 48 V

Maximum Operating Temperature: + 70 C

Minimum Operating Temperature: - 40 C
