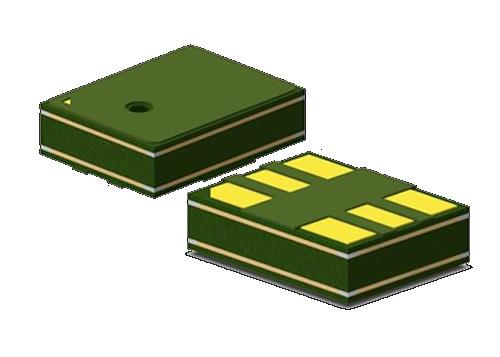

TDK InvenSense ICS-40619 High Dynamic Range Microphone High Dynamic Range Microphone with Differential Output and Low Power

Depth: 0.98 mm

Shape: Rectangular

Width: 2.65 mm

Length: 3.5 mm

Impedance: 5.5 kOhms

Port Type: Top

Tolerance: 1 dB

Technology: MEMS

Output Type: Analog

Sensitivity: - 38 dB

Unit Weight: 401.250 mg

Mounting Style: SMD/SMT

Frequency Range: 20 Hz to 20 kHz

Termination Style: SMD/SMT

Sound Pressure Level: 160 dB

Supply Voltage - Max: 3.63 V

Supply Voltage - Min: 1.52 V

Directional Properties: Omnidirectional

Operating Supply Current: 165 uA

Operating Supply Voltage: 2.75 V

SNR - Signal to Noise Ratio: 67 dB

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C
