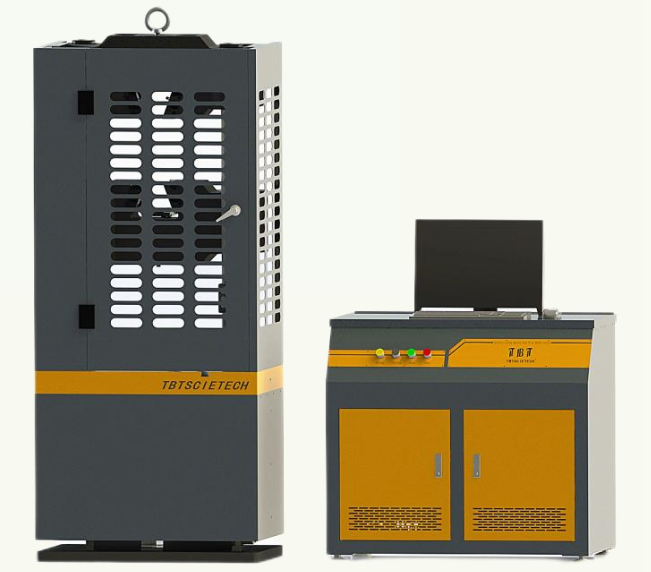

TBT UTM-1000CH Universal Testing Machine ( For Steel Bar and Steel Strand )

Max. Capacity(KN): 1000

Range: 2%-100%F.S.(full range, without gear）

Reading accuracy :Grade 1（option Grade 0.5）

Error: ±1%（±0.5%）

Column Number: 6

Width between two column: 510

Max tensile space（mm): 1000

Max compression space(mm): 1000

Bending test Distance between two points (mm): 100-400

Round specimen clamp diameter(mm): Ø14-32, Ø32-45

Flat specimen clamp thickness (mm): 0-40

Wire strand specimen clamp diameter(mm) 8-18mm

Stroke (mm): 200

Pistons rise fastest speed(mm/min) : 80

Beam rising speed (mm/min): 310

Displacement reading relative error: ±1%（±0.5%）

Deformation reading relative error: ±1%（±0.5%）

Motor capacity (KW): 2.5

Main unit dimension (mm): 960×620×2600

Oil source cabinet dimension (mm): 1000×600×910
Main unit net weight (Kg): 2500

Oil source cabinet net weight (Kg): 250
