Direct access to our certified experts
Gauge: up to 4 mm
Resolution, down to 0.3 nm
Roundness: Radial accuracy ± 0.008 μm
Roughness: Noise < 20 nm Rq all axes; Ra values < 0.05 µm Rq
Contour: LS Arc measurement 5 µm; Pt 0.5 µm
Key features
Fully Automated arm attitude/orientation mechanism
Self Calibration of arm, column and spindle
Automated gauge calibration
High precision air bearing spindle ± 0.01 µm
Gauge resolution 0.3 nm
Active anti-vibration and environmental isolation system

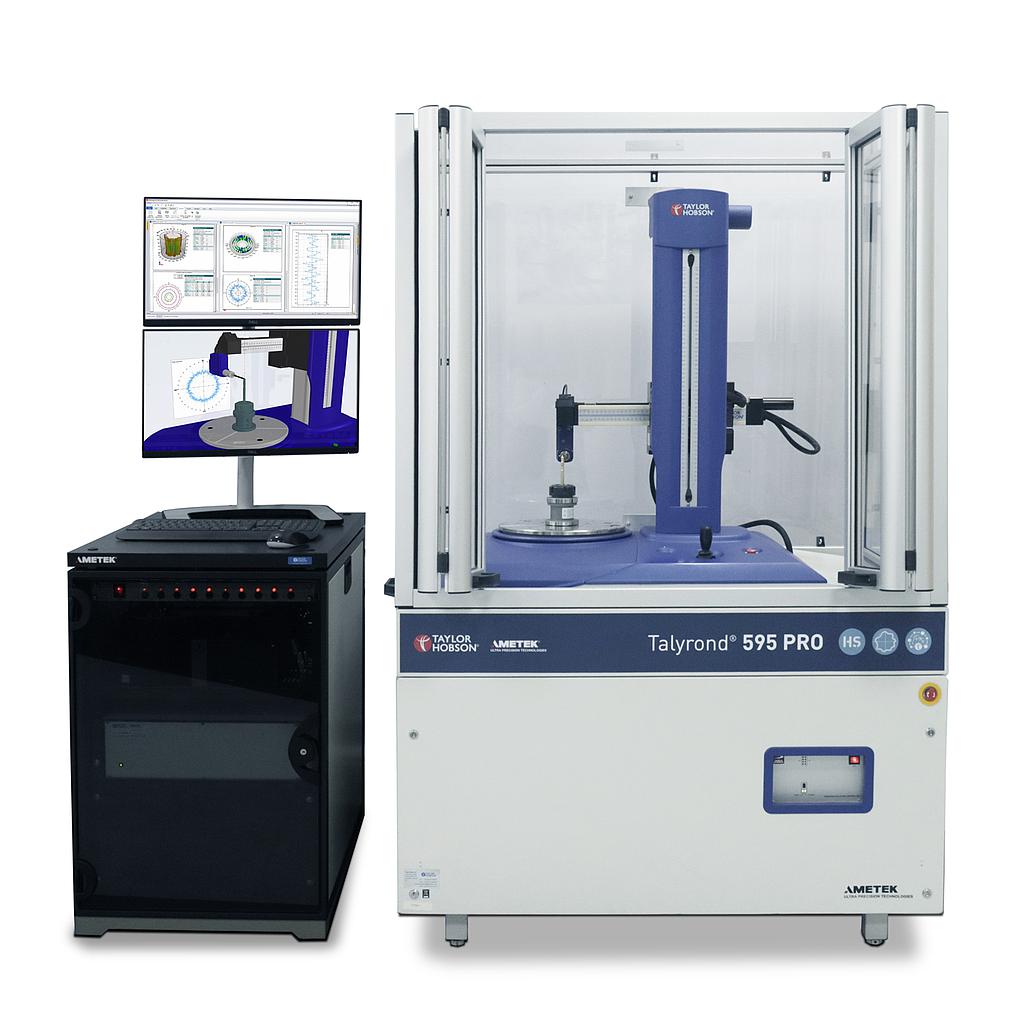

All axes of the Talyrond® 595H PRO have been precision machined and enhanced further with innovative software corrections giving unmatched straightness and roundness accuracies. The centre and levelling table is fitted with high resolution motors enabling accurate and fully automated set-up to defined targets.
The systems Talymin 6 gauge allows measurement down to nanometric level while the automated arm orientation provides unrivalled versatility ensuring access to the most intricate of parts. Integral to the Talyrond® 595H PRO are the active anti-vibration mounts provided with an environmental enclosure eliminating external influence and allowing measurement closer to the manufacturing process.
Applications
Ball screw - full length of the contact point of the ball screw or lead screw
Camshafts - comparison to a DXF or lift data.
Bearing races - harmonic analysis
Turbochargers - low noise platform combined with the precision air bearing guarantee integrity of results
Roller bearings - roughness, form, roundness and part alignment
Fluid dynamic bearings - roundness, topography and roughness
